Walter

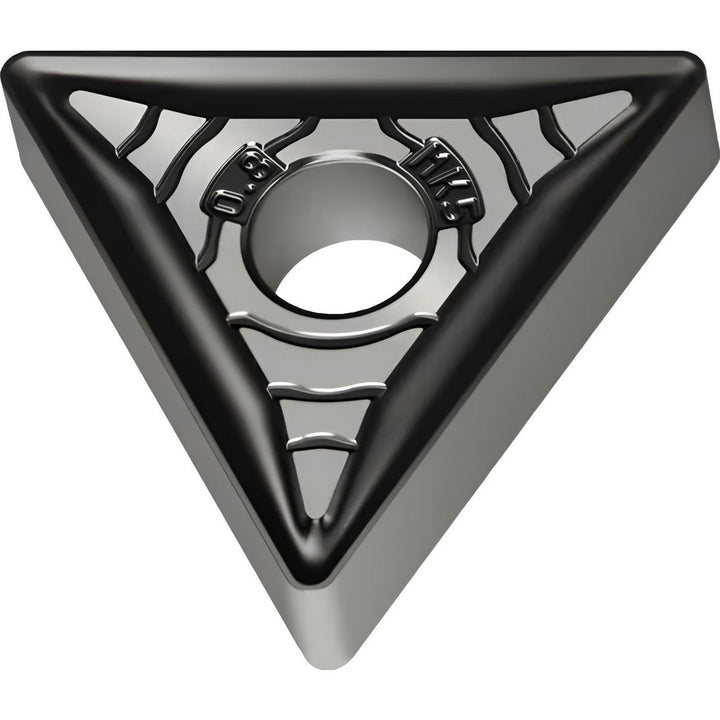

TNMG220408-MK5 WKK10S Carbide Insert, Grade WKK10S, TiCN - Walter 6353464
MFR# 6353464ISO/ANSI# TNMG432-MK5 WKK10SSeries TNMG-MK5
$22.48List $28.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeWKK10S
MaterialCarbide
CoatingTiCN
Description
The Walter 6353464 is a TNMG220408-MK5 WKK10S carbide indexable insert, grade WKK10S, TiCN coated. Suited for cast iron.
Specifications
Chip breakerMK5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle60degree
Industry standard numberTNMG432-MK5 WKK10S
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8660
Insert materialCarbide
Insert shapeTriangle
Insert size code432
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG220408-MK5 WKK10S
Lead angle60degree
Length range0.7000 - 10.0000
Manufacturers catalog number6353464
Manufacturer gradeWKK10S
Material gradeH30; K10
Maximum depth of cut0.2362
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialCast Iron
RakeNegative
Rake angle14
Relief angle0
Secondary workpiece materialHard Material
StandardsANSI; ISO
Tolerance codeM
Width0.8660in
Wiper edgeNo
