Walter

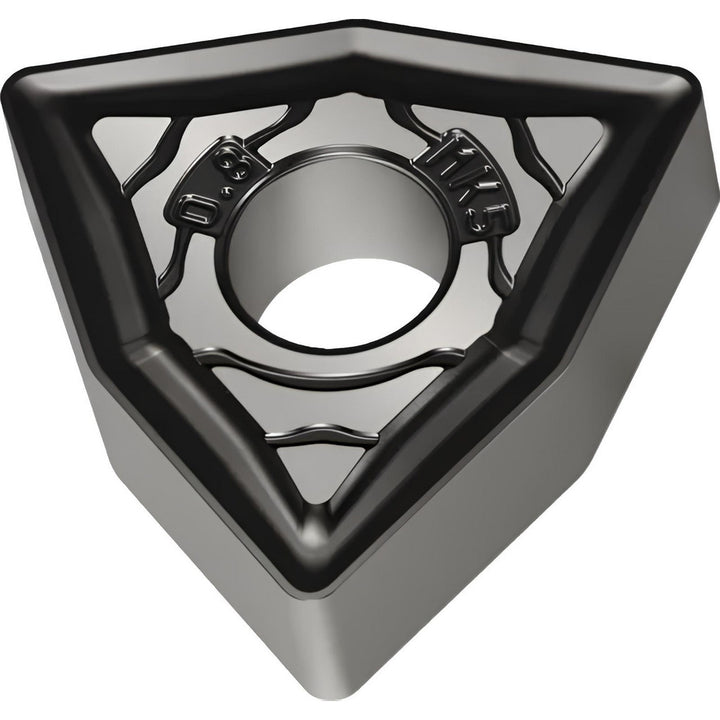

WNMG060408-MK5 WKK10S Carbide Insert, Grade WKK10S, TiCN - Walter 6353512
MFR# 6353512ISO/ANSI# WNMG332-MK5 WKK10SSeries WNMG-MK5
$16.32List $20.93
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeWKK10S
MaterialCarbide
CoatingTiCN
Description
The Walter 6353512 is a WNMG060408-MK5 WKK10S carbide indexable insert, grade WKK10S, TiCN coated. Suited for cast iron.
Specifications
Chip breakerMK5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle80degree
Industry standard numberWNMG332-MK5 WKK10S
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5140
Insert materialCarbide
Insert shapeTrigon
Insert size code332
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG060408-MK5 WKK10S
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number6353512
Manufacturer gradeWKK10S
Material gradeH30; K10
Maximum depth of cut0.1575
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialCast Iron
RakeNegative
Rake angle14
Relief angle0
Secondary workpiece materialHard Material
StandardsANSI; ISO
Tolerance codeM
Width0.5140in
Wiper edgeNo
