Walter

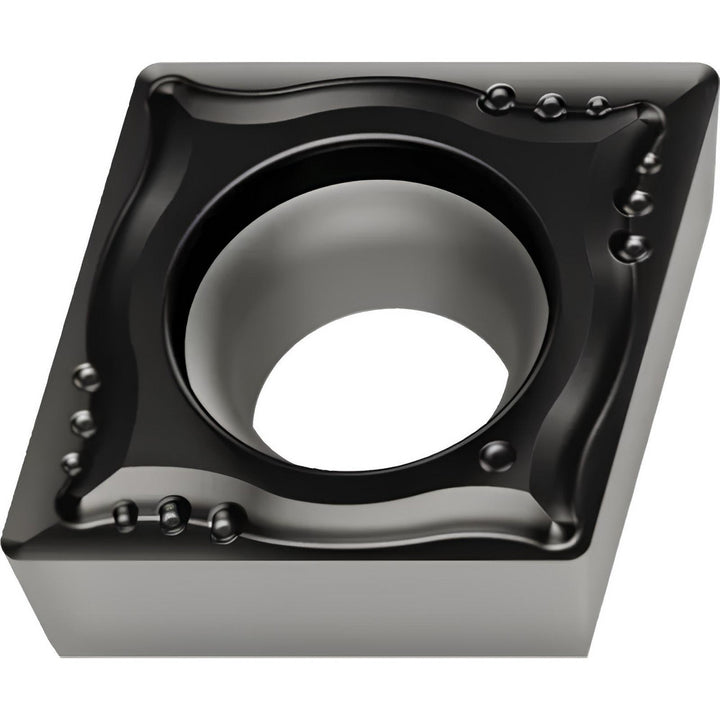

CPGT09T308-MK4 WKK20S Carbide Insert, Grade WKK20S, TiCN - Walter 6363502
MFR# 6363502ISO/ANSI# CPGT09T308Series CPGT-MK4
$32.29List $40.70
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeWKK20S
MaterialCarbide
CoatingTiCN
Description
The Walter 6363502 is a CPGT09T308-MK4 WKK20S carbide indexable insert, grade WKK20S, TiCN coated. Suited for cast iron.
Specifications
Ansi insert codeCPGT32.52
Ansi size code32.52
Chip breakerMK4
Chip breaker operationRoughing; Medium Machining
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle80
Industry standard numberCPGT3(2.5)2-MK4 WKK20S
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3810
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.52
Insert styleCPGT
Insert thickness in5/32
Iso codeCPGT09T308-MK4 WKK20S
Iso insert codeCPGT09T308
Iso size code09T308
Lead angle80
Length range0.3000 - 0.4000
Manufacturers catalog number6363502
Manufacturer gradeWKK20S
Material gradeK20; P10
Maximum depth of cut0.1181
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Rake angle7
Relief angle11
Secondary workpiece materialSteel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.3810
Wiper edgeNo
