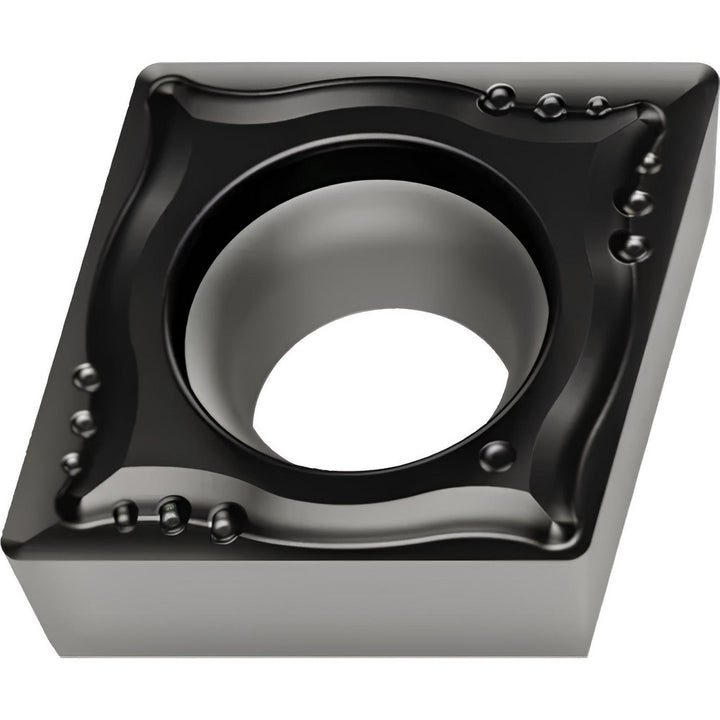

CPGT060204-MK4 WKK20S Carbide Insert, Grade WKK20S, TiCN - Walter 6364140

Walter

CPGT060204-MK4 WKK20S Carbide Insert, Grade WKK20S, TiCN - Walter 6364140

MFR# 6364140ISO/ANSI# CPGT2(1.5)1-MK4 WKK20SSeries CPGT-MK4

$22.97List $29.47 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeWKK20S
MaterialCarbide
CoatingTiCN

Description

The Walter 6364140 is a CPGT060204-MK4 WKK20S carbide indexable insert, grade WKK20S, TiCN coated. Suited for cast iron.

Specifications

Chip breakerMK4
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1100
Included angle80degree
Industry standard numberCPGT2(1.5)1-MK4 WKK20S
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2540
Insert materialCarbide
Insert shapeDiamond 80
Insert size code21.51
Insert styleCPGT
Insert thickness in3/32
Iso codeCPGT060204-MK4 WKK20S
Lead angle80degree
Length range0.0000 - 0.3000
Manufacturers catalog number6364140
Manufacturer gradeWKK20S
Material gradeK20; P10
Maximum depth of cut0.0787
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Rake angle7
Relief angle11
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeG
Width0.2540in
Wiper edgeNo
