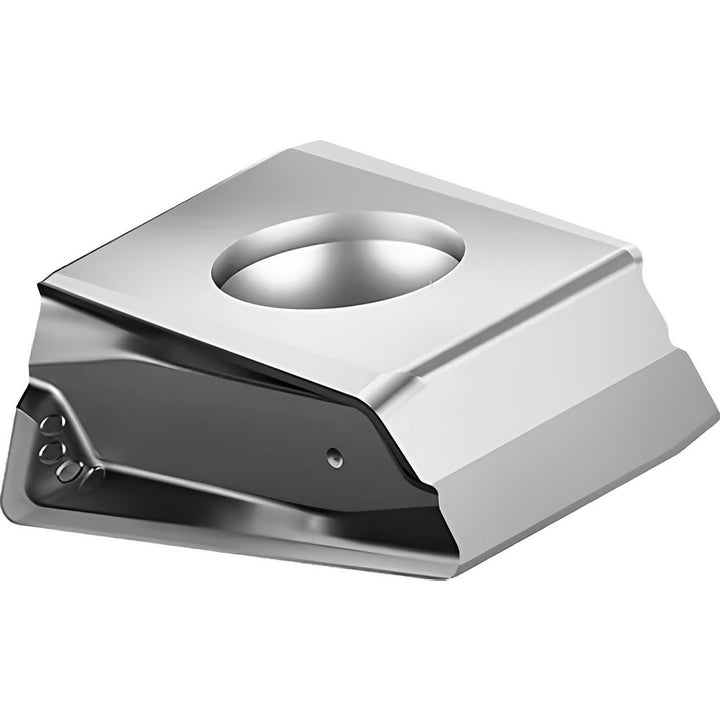

LNHU160708R-L55T WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 6369555

Walter

LNHU160708R-L55T WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 6369555

MFR# 6369555ISO/ANSI# LNHU160708R-L55T WKP35SCat# LNHU160708R-L55TSeries LNHU

$34.95List $44.83 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeWKP35S
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 6369555 is a LNHU160708R-L55T WKP35S solid carbide indexable insert, grade WKP35S, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeLNHU160708R-L55T WKP35S
Chip breakerL55T
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityF5241
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle0.2830
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size16
Insert size code160708
Insert styleLNHU
Iso codeLNHU160708R-L55T WKP35S
Length0.6300
Length range0.6000 to 0.6500
Manufacturers catalog numberLNHU160708R-L55T
Manufacturer gradeWKP35S
Material applicationSteel; Cast Iron
Material gradeP35; K35
Maximum depth of cut0.6300
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle28
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2830
Thickness range0.2500 to 0.3500
Width0.6100
