Walter

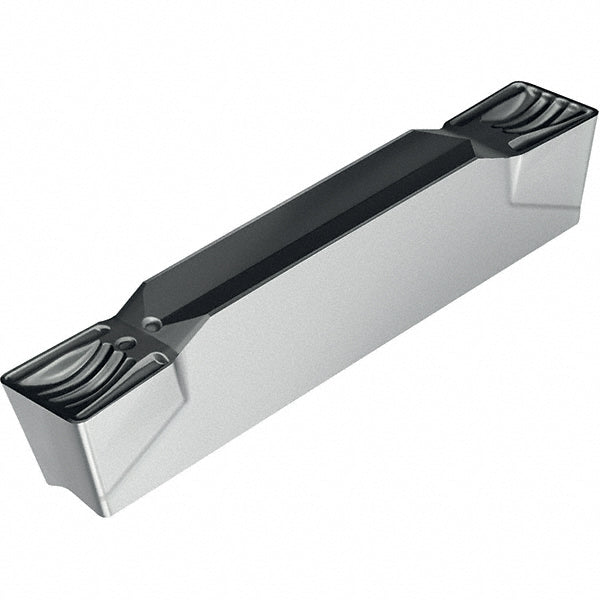

GX16-1E239N02-UF4 Solid Carbide Insert, Grade WSM33S, Al2O3 - Walter 6388423
MFR# 6388423ISO/ANSI# GX16-1E239N02-UF4Cat# GX16-1E239N02-UF4Series Tiger-tec
$36.75List $46.32
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM33S
MaterialSolid Carbide
CoatingAl2O3
Description
The Walter 6388423 is a GX16-1E239N02-UF4 solid carbide indexable insert, grade WSM33S, Al2O3 coated. Suited for superalloy.
Specifications
Ansi codeGX161E239N02UF4 WSM33S
Chip breakerUF4
Coating finishAl2O3
Coating processPVD
Corner radius0.0079
Cutting width0.0941
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size1E239N02
Insert size code1E239N02
Insert styleGX
Iso codeGX16-1E239N02-UF4
Manufacturers catalog numberGX16-1E239N02-UF4
Manufacturer gradeWSM33S
Material gradeS30; M30; P35
Maximum depth of cut (mm)1.30
Multi use toolYes
Overall length0.6299
Primary workpiece materialSuperalloy
Single or double endDouble
StandardsANSI; ISO
