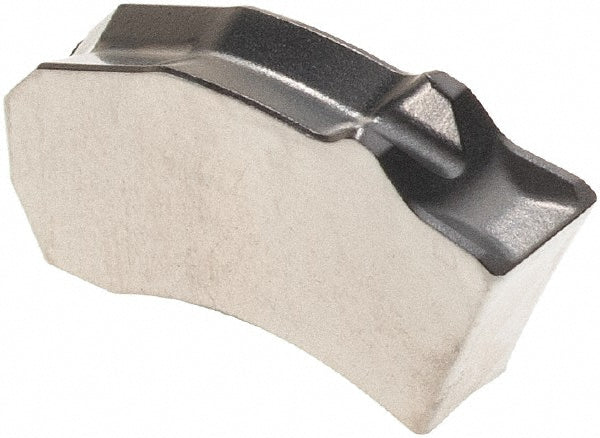

SX-3E300N02-CE4 WSM33S Solid Carbide Insert, Grade WSM33S, TiAlN - Walter 6393136
MFR# 6393136ISO/ANSI# SX-3E300N02-CE4 WSM33SCat# SX-3E300N02-CE4Series Tiger-tec Silver
$20.20List $25.91
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM33S
MaterialSolid Carbide
CoatingTiAlN
Description
The Walter 6393136 is a SX-3E300N02-CE4 WSM33S solid carbide indexable insert, grade WSM33S, TiAlN coated. Suited for superalloy.
Specifications
ChipbreakerCE4
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Cutting tool applicationGrooving; Parting
Cutting width0.1181
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code3E300N02
Insert styleSX
Iso codeSX-3E300N02-CE4 WSM33S
Lead angle directionNeutral
Manufacturers catalog numberSX-3E300N02-CE4
Manufacturer gradeWSM33S
Material gradeS30; M30; P35
Multi use toolYes
Primary workpiece materialSuperalloy
Single or double endSingle
StandardsANSI; ISO
