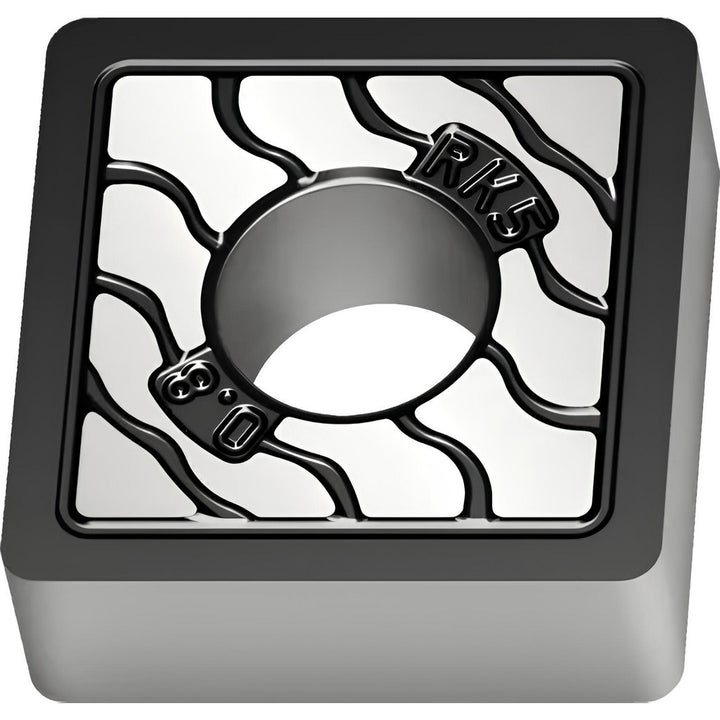

SNMA150612-RK5 WKK20S Carbide Insert, Grade WKK20S, TiCN - Walter 6394620

Walter

SNMA150612-RK5 WKK20S Carbide Insert, Grade WKK20S, TiCN - Walter 6394620

MFR# 6394620ISO/ANSI# SNMA543-RK5 WKK20SSeries SNMA-RK5

$29.31List $37.59 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeSquare
GradeWKK20S
MaterialCarbide
CoatingTiCN

Description

The Walter 6394620 is a SNMA150612-RK5 WKK20S carbide indexable insert, grade WKK20S, TiCN coated. Suited for cast iron.

Specifications

Chip breakerRK5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2500
Included angle90degree
Industry standard numberSNMA543-RK5 WKK20S
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in5/8
Insert materialCarbide
Insert shapeSquare
Insert size code543
Insert styleSNMA
Insert thickness in1/4
Iso codeSNMA150612-RK5 WKK20S
Lead angle90degree
Length range0.6000 - 0.6500
Manufacturers catalog number6394620
Manufacturer gradeWKK20S
Material gradeK20; P10
Maximum depth of cut0.2756
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width in5/8in
Wiper edgeNo
