Walter

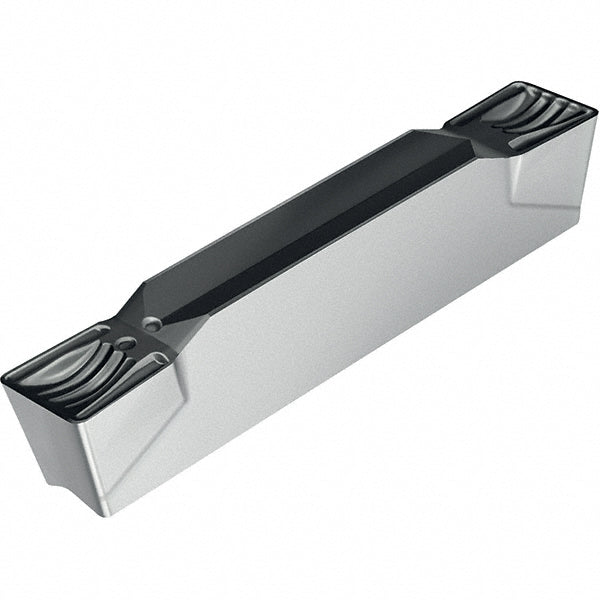

GX24-2E318N03-UF4 Solid Carbide Insert, Grade WSM43S, Al - Walter 6403596
MFR# 6403596ISO/ANSI# GX24-2E318N03-UF4Cat# GX24-2E318N03-UF4Series Tiger-tec
$39.51List $49.79
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM43S
MaterialSolid Carbide
CoatingAl
Description
The Walter 6403596 is a GX24-2E318N03-UF4 solid carbide indexable insert, grade WSM43S, Al coated. Suited for superalloy.
Specifications
Ansi codeGX242E318N03UF4 WSM43S
Chip breakerUF4
Coating finishAl
Coating processPVD
Corner radius0.0118
Cutting width0.1252
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size2E318N03
Insert size code2E318N03
Insert styleGX
Iso codeGX24-2E318N03-UF4
Manufacturers catalog numberGX24-2E318N03-UF4
Manufacturer gradeWSM43S
Material gradeS45; M45; P45
Maximum depth of cut0.0787
Maximum depth of cut range0.0750 to 0.1000
Multi use toolYes
Overall length0.9449
Primary workpiece materialSuperalloy
Single or double endDouble
StandardsANSI; ISO
