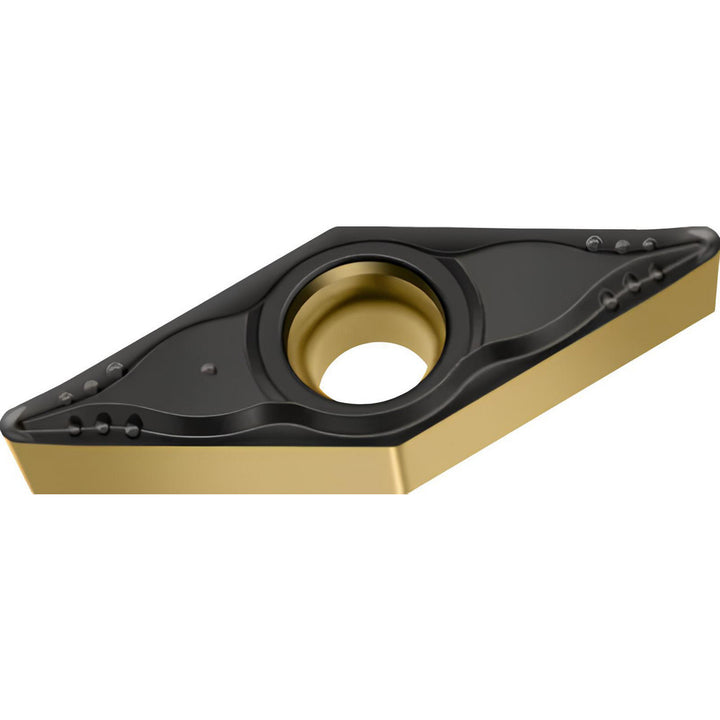

VBMT160404-MP4 WPP20S Carbide Insert, Grade WPP20S, TiCN - Walter 6406428

Walter

VBMT160404-MP4 WPP20S Carbide Insert, Grade WPP20S, TiCN - Walter 6406428

MFR# 6406428ISO/ANSI# VBMT160404Series VBMT-MP4

$23.50List $30.15 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeWPP20S
MaterialCarbide
CoatingTiCN

Description

The Walter 6406428 is a VBMT160404-MP4 WPP20S carbide indexable insert, grade WPP20S, TiCN coated. Suited for steel.

Specifications

Ansi insert codeVBMT331
Ansi size code331
Chip breakerMP4
Chip breaker operationRoughing; Medium Machining
Clearance codeB
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle35
Industry standard numberVBMT331-MP4 WPP20S
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6540
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT160404-MP4 WPP20S
Iso insert codeVBMT160404
Iso size code160404
Lead angle35
Length range0.6500 - 0.7000
Manufacturers catalog number6406428
Manufacturer gradeWPP20S
Material gradeP20; K30
Maximum depth of cut0.0780
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle7
Relief angle5
Secondary workpiece materialCast Iron
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
