Walter

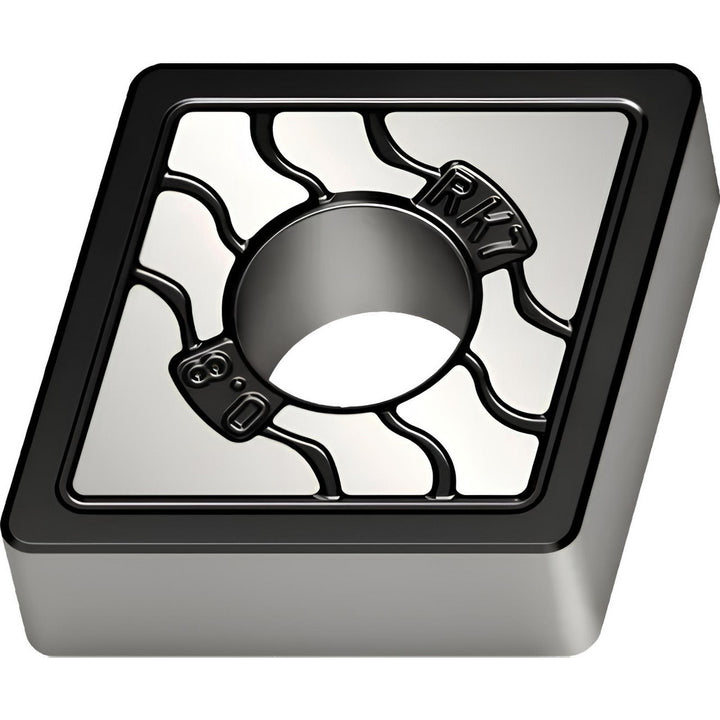

CNMA120412-RK7 WKK20S Carbide Insert, Grade WKK20S, TiCN - Walter 6408669
MFR# 6408669ISO/ANSI# CNMA433-RK7 WKK20SSeries CNMA-RK7
$18.44List $23.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeWKK20S
MaterialCarbide
CoatingTiCN
Description
The Walter 6408669 is a CNMA120412-RK7 WKK20S carbide indexable insert, grade WKK20S, TiCN coated. Suited for cast iron.
Specifications
Chip breakerRK7
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberCNMA433-RK7 WKK20S
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond 80
Insert size code433
Insert styleCNMA
Insert thickness in3/16
Iso codeCNMA120412-RK7 WKK20S
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number6408669
Manufacturer gradeWKK20S
Material gradeK20; P10
Maximum depth of cut0.1969
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle-20
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width0.5080in
Wiper edgeNo
