Walter

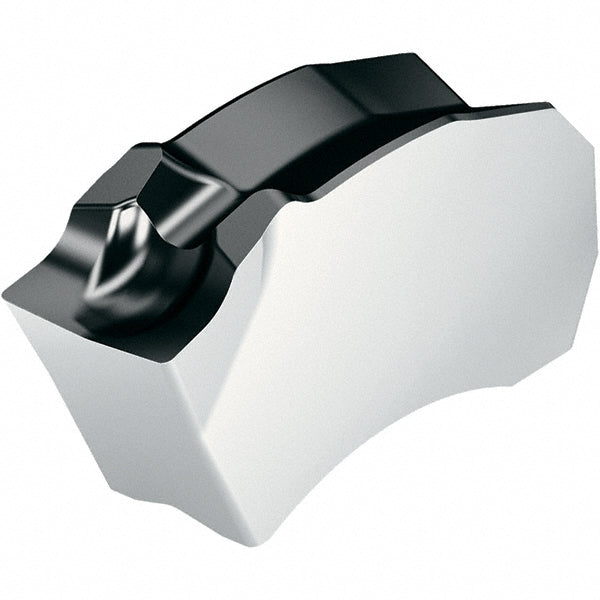

SX-2E200N02-CF5 WSM33S Solid Carbide Insert, Grade WSM33S, TiAlN - Walter 6422456
MFR# 6422456ISO/ANSI# SX-2E200N02-CF5 WSM33SCat# SX-2E200N02-CF5Series Tiger-tec Silver
$18.18List $23.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM33S
MaterialSolid Carbide
CoatingTiAlN
Description
The Walter 6422456 is a SX-2E200N02-CF5 WSM33S solid carbide indexable insert, grade WSM33S, TiAlN coated. Suited for superalloy.
Specifications
ChipbreakerCF5
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Cutting tool applicationSlitting
Cutting width0.0787
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code2E200N02
Insert styleSX
Iso codeSX-2E200N02-CF5 WSM33S
Lead angle directionNeutral
Manufacturers catalog numberSX-2E200N02-CF5
Manufacturer gradeWSM33S
Material gradeS30; M30; P35
Multi use toolNo
Primary workpiece materialSuperalloy
Single or double endSingle
StandardsANSI; ISO
