Walter

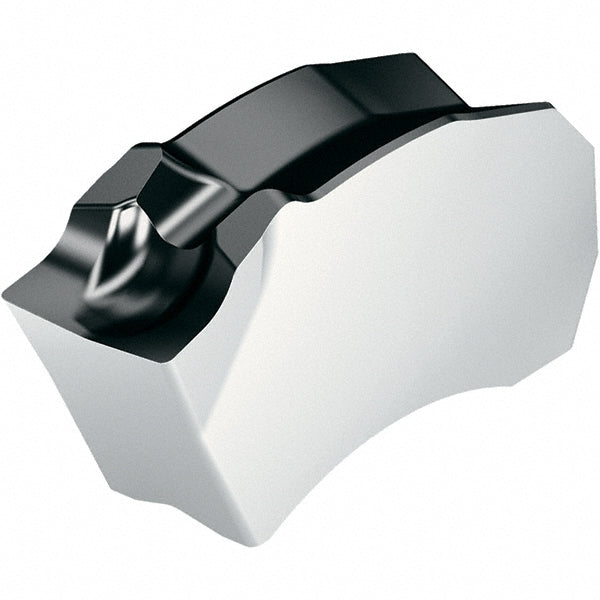

SX-4E400N02-SF5 WSM33S Solid Carbide Insert, Grade WSM33S, TiAlN - Walter 6422501
MFR# 6422501ISO/ANSI# SX-4E400N02-SF5 WSM33SCat# SX-4E400N02-CF5Series Tiger-tec Silver
$19.63List $25.17
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM33S
MaterialSolid Carbide
CoatingTiAlN
Description
The Walter 6422501 is a SX-4E400N02-SF5 WSM33S solid carbide indexable insert, grade WSM33S, TiAlN coated. Suited for superalloy.
Specifications
ChipbreakerSF5
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Cutting tool applicationSlitting
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code4E400N02
Insert styleSX
Iso codeSX-4E400N02-SF5 WSM33S
Lead angle directionNeutral
Manufacturers catalog numberSX-4E400N02-CF5
Manufacturer gradeWSM33S
Material gradeS30; M30; P35
Multi use toolNo
Primary workpiece materialSuperalloy
Single or double endSingle
StandardsANSI; ISO
