Walter

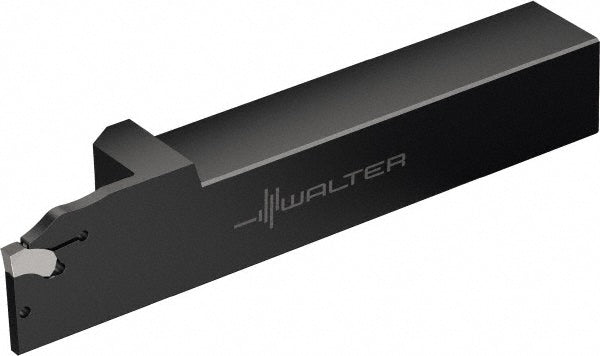

Indexable Grooving - Walter 6424510
MFR# 6424510Series G2021
$305.41List $357.50
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Walter 6424510 indexable grooving. Suited for universal. Series G2021.
Specifications
Back of bar to cutting edge0.7020
Compatible insert size codeSX-3
Complete insert compatibilitySX-3E300N02-CE4; SX-3E300N02-CF5; SX-3E300N02-CF6
Coolant throughYes
Cutting tool applicationCut-Off; Grooving
Full radius insertNo
Hand of holderLeft Hand
Head length1.4600
Insert compatibilitySX-3..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.8660
Maximum groove width0.1180
Maximum overhang in1.4600
Overall length4.9000
Primary workpiece materialUniversal
Shank height0.7500
Shank length3.4400
Shank width diameter in3/4
Toolholder styleG2012
