Walter

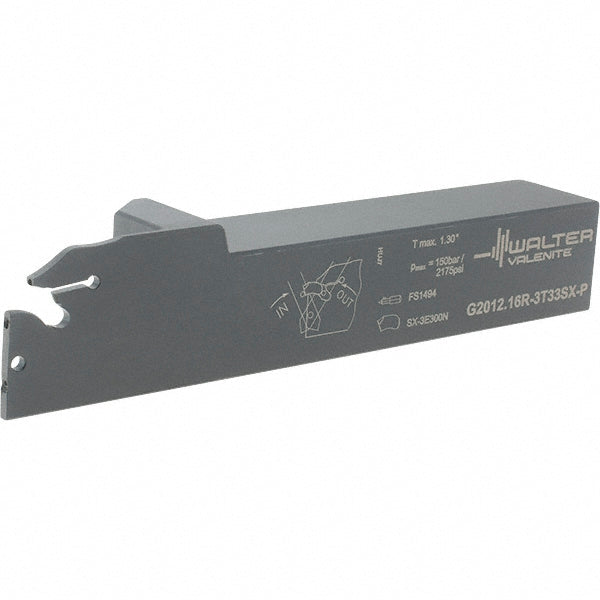

Indexable Grooving - Walter 6424517
MFR# 6424517Series G2021
$326.60List $382.31
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Walter 6424517 indexable grooving. Suited for universal. Series G2021.
Specifications
Back of bar to cutting edge0.9510
Compatible insert size codeSX-3
Complete insert compatibilitySX-3E300N02-CE4; SX-3E300N02-CF5; SX-3E300N02-CF6
Coolant throughYes
Cutting tool applicationCut-Off; Grooving
Full radius insertNo
Hand of holderRight Hand
Head length1.7400
Insert compatibilitySX-3..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut1.1020
Maximum groove width0.1180
Maximum overhang in1.7400
Overall length4.9000
Primary workpiece materialUniversal
Shank height1.0000
Shank length3.1600
Shank width diameter in1
Toolholder styleG2012
