Walter

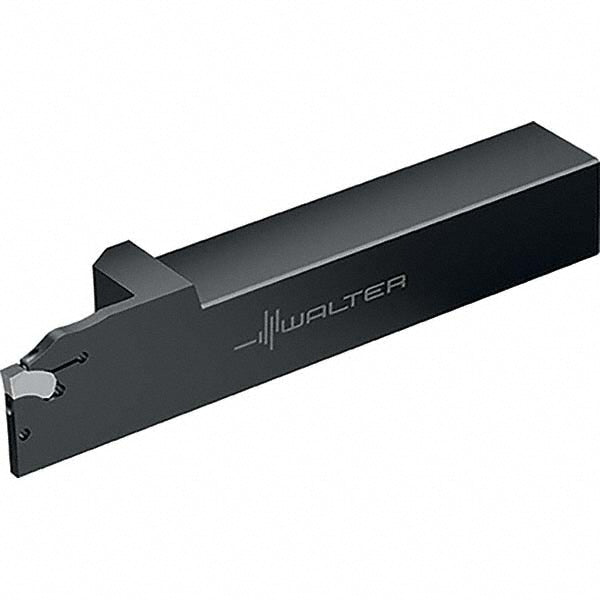

Indexable Grooving - Walter 6424519
MFR# 6424519Series G2021
$322.06List $370.44
Save 13%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Walter 6424519 indexable grooving. Suited for universal. Series G2021.
Specifications
Back of bar to cutting edge0.9330
Compatible insert size codeSX-4
Complete insert compatibilitySX-4E400N02-CE4; SX-4E400N02-CF5
Coolant throughYes
Cutting tool applicationCut-Off; Grooving
Full radius insertNo
Hand of holderRight Hand
Head length1.7400
Insert compatibilitySX-4..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut1.3000
Maximum groove width0.1560
Maximum overhang in1.7400
Overall length4.9000
Primary workpiece materialUniversal
Shank height1.0000
Shank length3.1600
Shank width diameter in1
Toolholder styleG2012
