Indexable Cut-Off - Walter 6424578

Walter

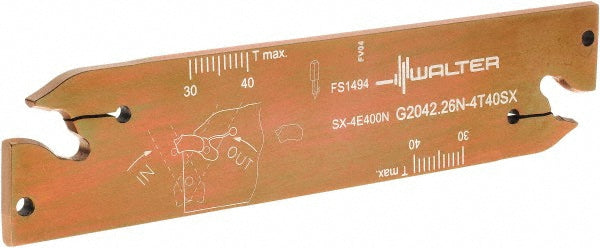

Indexable Cut-Off - Walter 6424578

MFR# 6424578

$154.08List $180.36 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Walter 6424578 indexable cut-off. Suited for universal.

Specifications

Blade height1.0236
Blade overall length5.9055
Blade styleG2042 N
Blade width (mm)3.40
Compatible insert styleSX
Complete insert compatibilitySX-4E400N02-CE4; SX-4E400N02-CF5
Complete tool block toolholder style compatibilitySBN12-26K-E; SBN12-26KS-E; SBN16-32-K-E; SBN16-32KS-E; SBN20-32K-E; SBN20-32KS-E; SBN20-46K-E; SBN2020-26-K; SBN2520-32-K; SBN3229-32-K; SBN3229-46-K; SBN4037-46-K
Cutting directionNeutral
Cutting height0.8228
Cutting tool applicationGrooving; Parting
End typeDouble
Insert holding methodSelf Grip
Insert styleSX-4..
Insert width0.1575
Insert width (mm)4.00
Maximum depth of cut1.5748
Minimum insert width0.1575
Primary workpiece materialUniversal
StandardsISO
Tool block styleSBN
