Walter

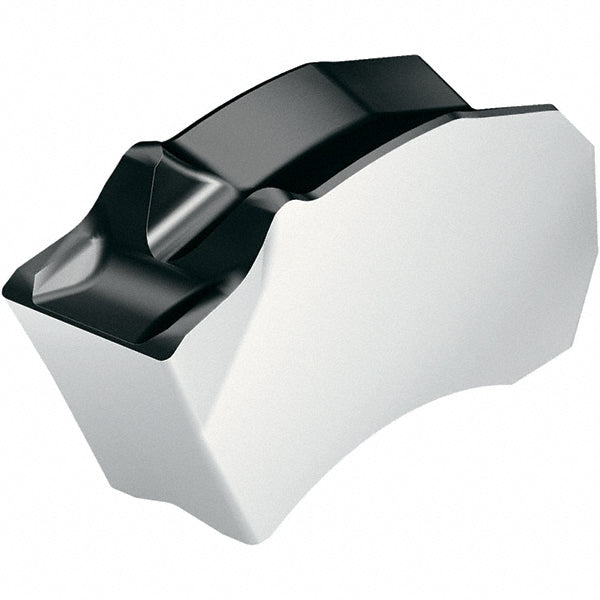

SX-4E400N02-CE4 WSM43S Solid Carbide Insert, Grade WSM43S, TiAlN - Walter 6427097
MFR# 6427097ISO/ANSI# SX-4E400N02-CE4 WSM43SCat# SX-4E400N02-CE4Series Tiger-tec Silver
$21.30List $27.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM43S
MaterialSolid Carbide
CoatingTiAlN
Description
The Walter 6427097 is a SX-4E400N02-CE4 WSM43S solid carbide indexable insert, grade WSM43S, TiAlN coated. Suited for superalloy.
Specifications
ChipbreakerCE4
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Cutting tool applicationGrooving; Parting
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code4E400N02
Insert styleSX
Iso codeSX-4E400N02-CE4 WSM43S
Lead angle directionNeutral
Manufacturers catalog numberSX-4E400N02-CE4
Manufacturer gradeWSM43S
Material gradeS45; M45; P45
Multi use toolYes
Primary workpiece materialSuperalloy
Single or double endSingle
StandardsANSI; ISO
