Walter

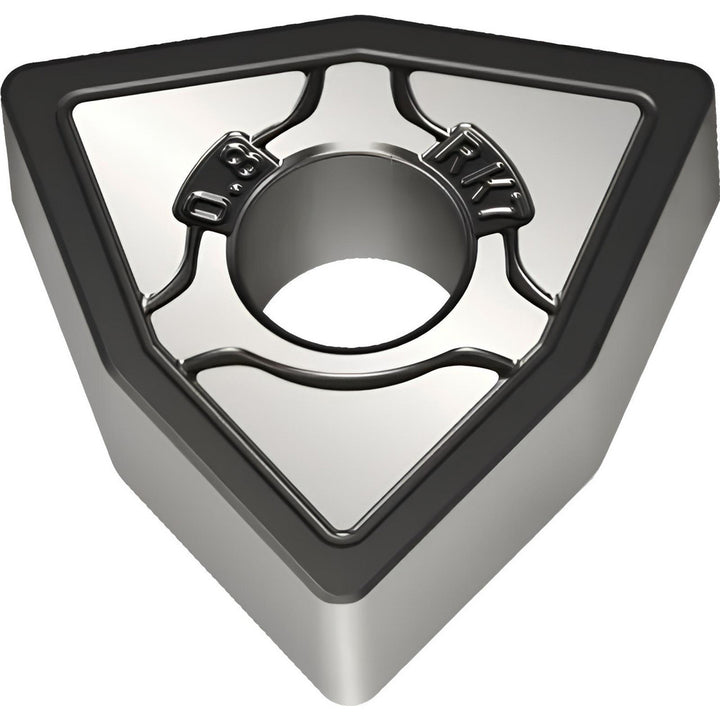

WNMA080412-RK7 WKK10S Carbide Insert, Grade WKK10S, TiCN - Walter 6431866
MFR# 6431866ISO/ANSI# WNMA433-RK7 WKK10SSeries WNMA-RK7
$20.46List $26.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeWKK10S
MaterialCarbide
CoatingTiCN
Description
The Walter 6431866 is a WNMA080412-RK7 WKK10S carbide indexable insert, grade WKK10S, TiCN coated. Suited for cast iron.
Specifications
Chip breakerRK7
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberWNMA433-RK7 WKK10S
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCarbide
Insert shapeTrigon
Insert size code433
Insert styleWNMA
Insert thickness in3/16
Iso codeWNMA080412-RK7 WKK10S
Lead angle80degree
Length range0.6500 - 0.7000
Manufacturers catalog number6431866
Manufacturer gradeWKK10S
Material gradeH30; K10
Maximum depth of cut0.1969
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialCast Iron
RakeNegative
Rake angle-20
Relief angle0
Secondary workpiece materialHard Material
StandardsANSI; ISO
Tolerance codeM
Width0.6840in
Wiper edgeNo
