Walter

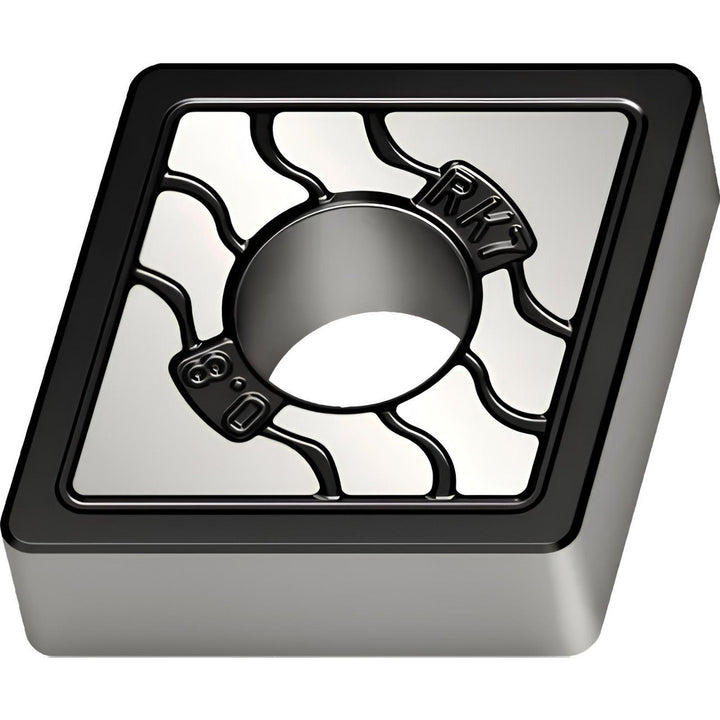

CNMA120408-RK7 WKK10S Carbide Insert, Grade WKK10S, TiCN - Walter 6435155
MFR# 6435155ISO/ANSI# CNMA432-RK7 WKK10SSeries CNMA-RK7
$18.44List $23.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeWKK10S
MaterialCarbide
CoatingTiCN
Description
The Walter 6435155 is a CNMA120408-RK7 WKK10S carbide indexable insert, grade WKK10S, TiCN coated. Suited for cast iron.
Specifications
Chip breakerRK7
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberCNMA432-RK7 WKK10S
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCNMA
Insert thickness in3/16
Iso codeCNMA120408-RK7 WKK10S
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number6435155
Manufacturer gradeWKK10S
Material gradeH30; K10
Maximum depth of cut0.1969
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle-20
Relief angle0
Secondary workpiece materialHard Material
StandardsANSI; ISO
Tolerance codeM
Width0.5080in
Wiper edgeNo
