Walter

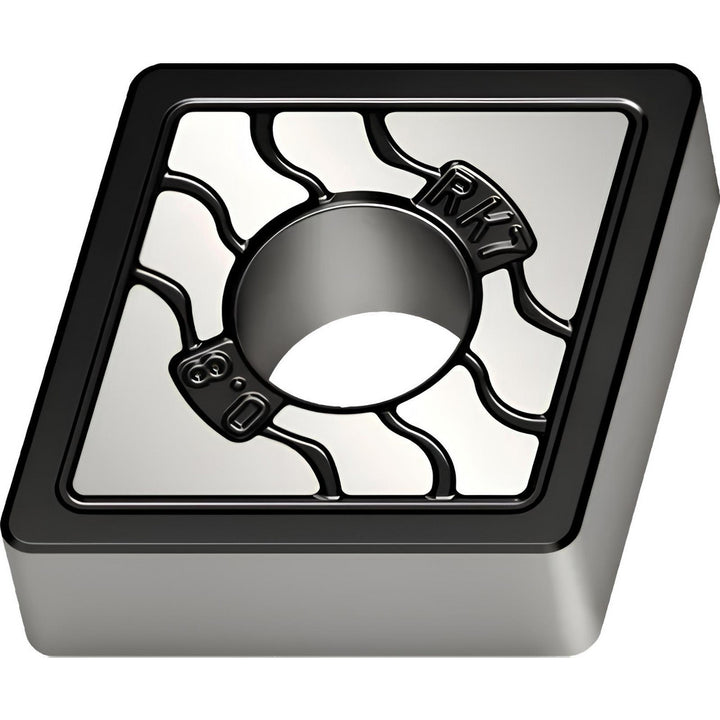

CNMA160612-RK7 WKK10S Carbide Insert, Grade WKK10S, TiCN - Walter 6435158
MFR# 6435158ISO/ANSI# CNMA543-RK7 WKK10SSeries CNMA-RK7
$29.31List $37.59
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond 80
GradeWKK10S
MaterialCarbide
CoatingTiCN
Description
The Walter 6435158 is a CNMA160612-RK7 WKK10S carbide indexable insert, grade WKK10S, TiCN coated. Suited for cast iron.
Specifications
Chip breakerRK7
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2500
Included angle80degree
Industry standard numberCNMA543-RK7 WKK10S
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6346
Insert materialCarbide
Insert shapeDiamond 80
Insert size code543
Insert styleCNMA
Insert thickness in1/4
Iso codeCNMA160612-RK7 WKK10S
Lead angle80degree
Length range0.6000 - 0.6500
Manufacturers catalog number6435158
Manufacturer gradeWKK10S
Material gradeH30; K10
Maximum depth of cut0.2756
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle-20
Relief angle0
Secondary workpiece materialHard Material
StandardsANSI; ISO
Tolerance codeM
Width0.6346in
Wiper edgeNo
