Walter

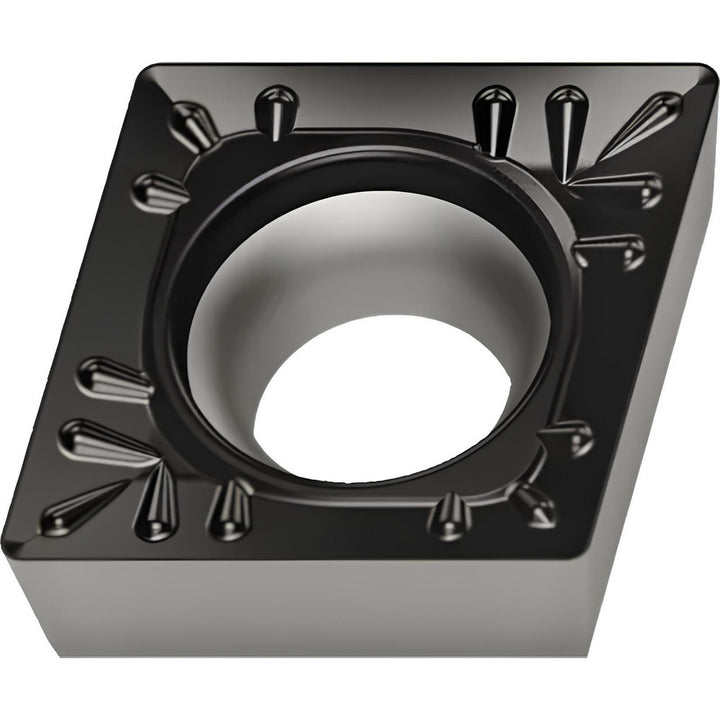

CCMT060208-RM4 WMP20S Carbide Insert, Grade WMP20S, TiCN - Walter 6461282
MFR# 6461282ISO/ANSI# CCMT2(1.5)2-RM4 WMP20SSeries CCMT-RM4
$11.81List $15.14
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeWMP20S
MaterialCarbide
CoatingTiCN
Description
The Walter 6461282 is a CCMT060208-RM4 WMP20S carbide indexable insert, grade WMP20S, TiCN coated. Suited for steel, stainless steel.
Specifications
Chip breakerRM4
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1100
Included angle80
Industry standard numberCCMT2(1.5)2-RM4 WMP20S
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2540
Insert materialCarbide
Insert shapeDiamond
Insert size code21.52
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060208-RM4 WMP20S
Lead angle80
Length range0.0000 - 0.3000
Manufacturers catalog number6461282
Manufacturer gradeWMP20S
Material gradeM20; P25; S20
Maximum depth of cut0.0984
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle12
Relief angle7
Secondary workpiece materialSuper-alloys & Titanium
StandardsANSI; ISO
Tolerance codeM
Width0.254
Wiper edgeNo
