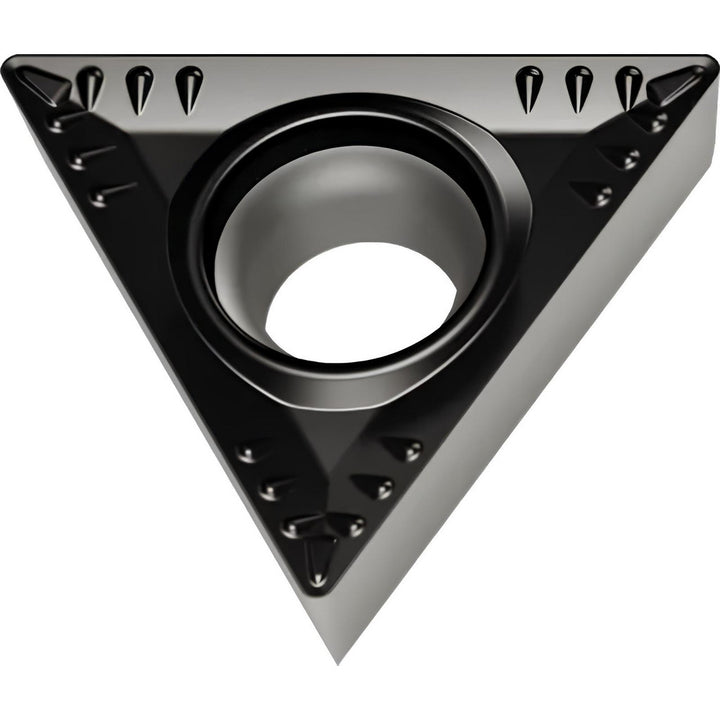

TCMT16T304-RM4 WMP20S Carbide Insert, Grade WMP20S, TiCN - Walter 6462195

Walter

TCMT16T304-RM4 WMP20S Carbide Insert, Grade WMP20S, TiCN - Walter 6462195

MFR# 6462195ISO/ANSI# TCMT3(2.5)1-RM4 WMP20SSeries TCMT-RM4

$18.35List $23.54 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTriangle
GradeWMP20S
MaterialCarbide
CoatingTiCN

Description

The Walter 6462195 is a TCMT16T304-RM4 WMP20S carbide indexable insert, grade WMP20S, TiCN coated. Suited for steel, stainless steel.

Specifications

Chip breakerRM4
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1730
Included angle60degree
Industry standard numberTCMT3(2.5)1-RM4 WMP20S
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6500
Insert materialCarbide
Insert shapeTriangle
Insert size code32.51
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT16T304-RM4 WMP20S
Lead angle60degree
Length range0.6500 - 0.7000
Manufacturers catalog number6462195
Manufacturer gradeWMP20S
Material gradeM20; P25; S20
Maximum depth of cut0.1181
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle12
Relief angle7
Secondary workpiece materialSuper-alloys & Titanium
StandardsANSI; ISO
Tolerance codeM
Width0.6500in
Wiper edgeNo
