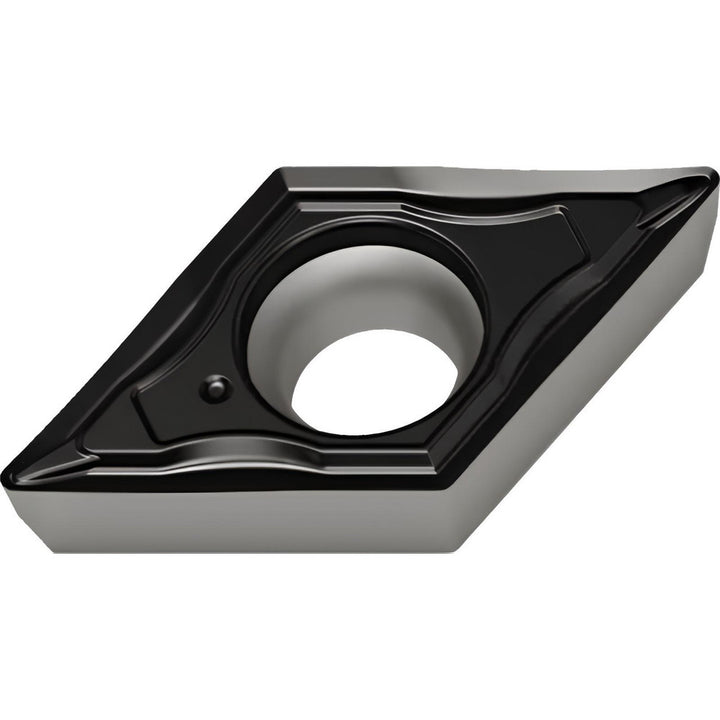

DCMT070204-FM4 WMP20S Carbide Insert, Grade WMP20S, TiCN - Walter 6464120

Walter

DCMT070204-FM4 WMP20S Carbide Insert, Grade WMP20S, TiCN - Walter 6464120

MFR# 6464120ISO/ANSI# DCMT2(1.5)1-FM4 WMP20SSeries DCMT-FM4

$12.71List $16.31 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeDiamond 55
GradeWMP20S
MaterialCarbide
CoatingTiCN

Description

The Walter 6464120 is a DCMT070204-FM4 WMP20S carbide indexable insert, grade WMP20S, TiCN coated. Suited for steel, stainless steel.

Specifications

Chip breakerFM4
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1100
Included angle55degree
Industry standard numberDCMT2(1.5)1-FM4 WMP20S
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.3050
Insert materialCarbide
Insert shapeDiamond 55
Insert size code21.51
Insert styleDCMT
Insert thickness in3/32
Iso codeDCMT070204-FM4 WMP20S
Lead angle55degree
Length range0.3000 - 0.4000
Manufacturers catalog number6464120
Manufacturer gradeWMP20S
Material gradeM20; P25; S20
Maximum depth of cut0.0591
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle6
Relief angle7
Secondary workpiece materialSuper-alloys & Titanium
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
