Walter

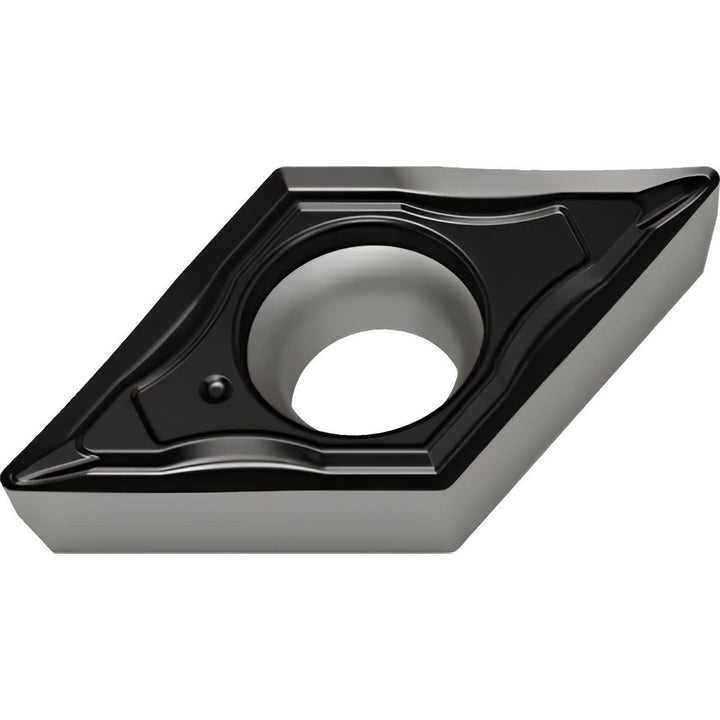

DCMT11T302-FM4 WMP20S Carbide Insert, Grade WMP20S, TiCN - Walter 6464145
MFR# 6464145ISO/ANSI# DCMT3(2.5)0.5-FM4 WMP20SSeries DCMT-FM4
$16.43List $21.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeWMP20S
MaterialCarbide
CoatingTiCN
Description
The Walter 6464145 is a DCMT11T302-FM4 WMP20S carbide indexable insert, grade WMP20S, TiCN coated. Suited for steel, stainless steel.
Specifications
Chip breakerFM4
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle55
Industry standard numberDCMT3(2.5)0.5-FM4 WMP20S
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4580
Insert materialCarbide
Insert shapeDiamond
Insert size code32.50.5
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T302-FM4 WMP20S
Lead angle55
Length range0.4000 - 0.5000
Manufacturers catalog number6464145
Manufacturer gradeWMP20S
Material gradeM20; P25; S20
Maximum depth of cut0.0394
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle6
Relief angle7
Secondary workpiece materialSuper-alloys & Titanium
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
