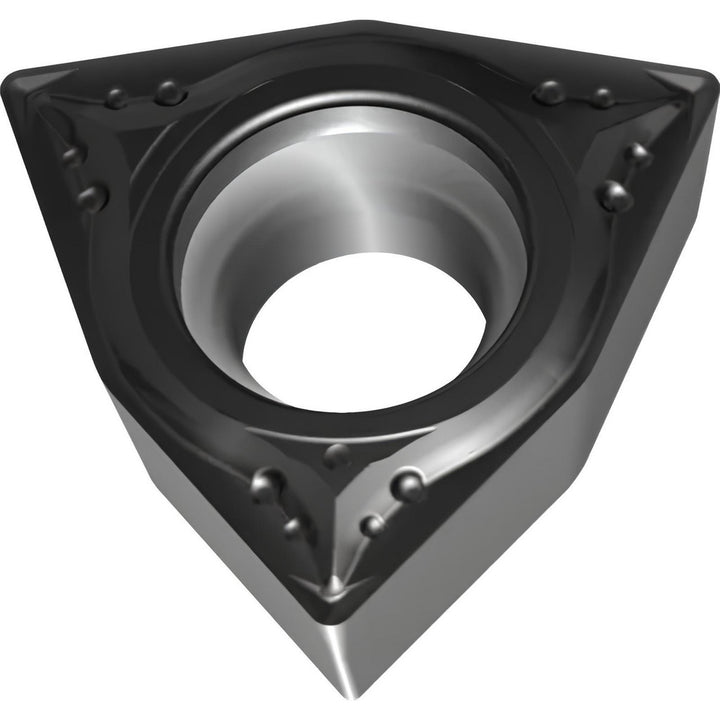

WCMT06T304-MK4 WKK20S Carbide Insert, Grade WKK20S, TiCN - Walter 6498449

Walter

WCMT06T304-MK4 WKK20S Carbide Insert, Grade WKK20S, TiCN - Walter 6498449

MFR# 6498449ISO/ANSI# WCMT3(2.5)1-MK4 WKK20SSeries WCMT-MK4

$16.93List $21.71 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTrigon
GradeWKK20S
MaterialCarbide
CoatingTiCN

Description

The Walter 6498449 is a WCMT06T304-MK4 WKK20S carbide indexable insert, grade WKK20S, TiCN coated. Suited for cast iron.

Specifications

Chip breakerMK4
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle80degree
Industry standard numberWCMT3(2.5)1-MK4 WKK20S
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.5140
Insert materialCarbide
Insert shapeTrigon
Insert size code32.51
Insert styleWCMT
Insert thickness in5/32
Iso codeWCMT06T304-MK4 WKK20S
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number6498449
Manufacturer gradeWKK20S
Material gradeK20; P10
Maximum depth of cut0.0980
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialCast Iron
RakePositive
Rake angle7
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width0.5140in
Wiper edgeNo
