Walter

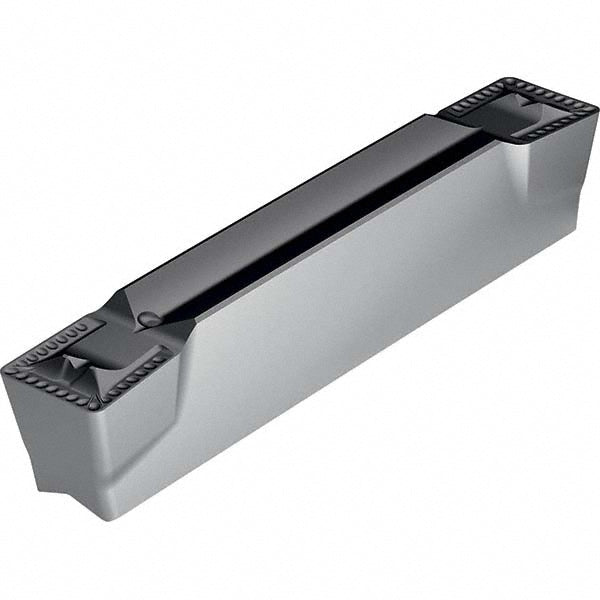

GX24-3E400N08-UD4 WKP23S Carbide Insert, Grade WKP23S, Al2O3 - Walter 6529453
MFR# 6529453ISO/ANSI# GX24-3E400N08-UD4 WKP23SSeries GX24
$33.18List $42.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWKP23S
MaterialCarbide
CoatingAl2O3
Description
The Walter 6529453 is a GX24-3E400N08-UD4 WKP23S carbide indexable insert, grade WKP23S, Al2O3 coated. Suited for steel.
Specifications
Ansi codeGX24-3E400N08-UD4 WKP23S
Chip breakerUD4
Coating finishAl2O3
Coating processCVD
Corner radius0.0310
Cutting height0.1610
Cutting width0.1570in
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialCarbide
Insert size4
Insert size code3E400N08
Insert styleGX24
Iso codeGX24-3E400N08-UD4 WKP23S
Lead angle90degree
Manufacturer gradeWKP23S
Maximum depth of cut0.1100
Maximum depth of cut range0.1000 to 0.1500
Multi use toolYes
Overall length0.9450in
Overall width0.1570in
Primary workpiece materialSteel
RakePositive
Secondary workpiece materialCast Iron
StandardsANSI; ISO
