Walter

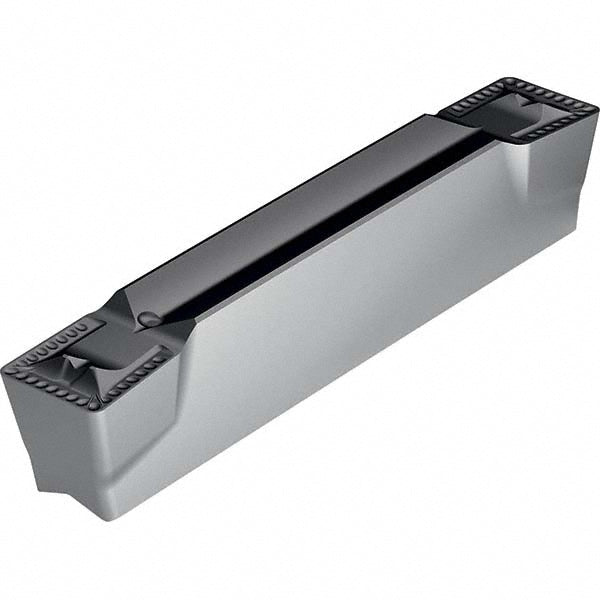

GX30-5E800N08-UD4 Carbide Insert, Grade WKP23S, Al2O3 - Walter 6529458
MFR# 6529458ISO/ANSI# GX30-5E800N08-UD4Series GX30
$51.88List $66.53
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWKP23S
MaterialCarbide
CoatingAl2O3
Description
The Walter 6529458 is a GX30-5E800N08-UD4 carbide indexable insert, grade WKP23S, Al2O3 coated. Suited for steel.
Specifications
Ansi codeGX30-5E800N08-UD4 WKP23S
Chip breakerUD4
Coating finishAl2O3
Coating processCVD
Corner radius0.0310
Cutting height0.2040
Cutting width0.3150
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialCarbide
Insert size8
Insert size code5E800N08
Insert styleGX30
Iso codeGX30-5E800N08-UD4
Lead angle90
Manufacturer gradeWKP23S
Maximum depth of cut0.1380
Maximum depth of cut range0.1000 to 0.1500
Measurement typeMetric
Multi use toolYes
Overall length1.181
Overall width0.315
Primary workpiece materialSteel
RakePositive
Secondary workpiece materialCast Iron
StandardsANSI; ISO
