Walter

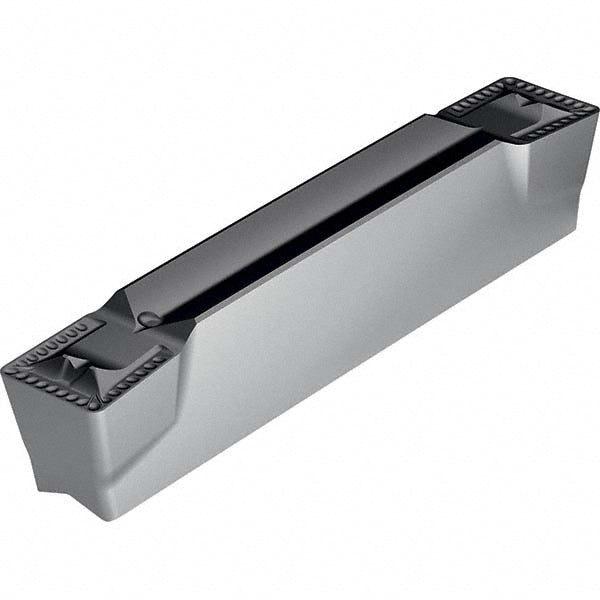

GX24-2E300N03-UD4 WKP13S Solid Carbide Insert, Grade WKP13S, Al2O3 - Walter 6529470
MFR# 6529470ISO/ANSI# GX24-2E300N03-UD4 WKP13SSeries GX24
$32.75List $42.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWKP13S
MaterialSolid Carbide
CoatingAl2O3
Description
The Walter 6529470 is a GX24-2E300N03-UD4 WKP13S solid carbide indexable insert, grade WKP13S, Al2O3 coated. Suited for cast iron, steel.
Specifications
Ansi codeGX24-2E300N03-UD4 WKP13S
Chip breakerUD4
Coating finishAl2O3
Coating processCVD
Corner radius0.0120
Cutting height0.1610
Cutting width0.1180
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size3
Insert size code2E300N03
Insert styleGX24
Iso codeGX24-2E300N03-UD4 WKP13S
Lead angle90
Manufacturer gradeWKP13S
Maximum depth of cut0.0790
Maximum depth of cut range0.0750 to 0.1000
Multi use toolYes
Overall length0.9450
Overall width0.1180
Primary workpiece materialCast Iron; Steel
RakePositive
Single or double endDouble
StandardsANSI; ISO
