Walter

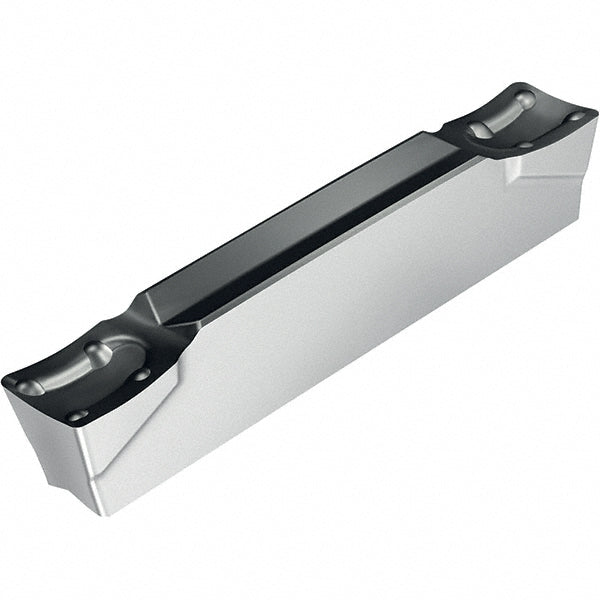

GX16-2E300N03-GD3 WKP23S Solid Carbide Insert, Grade WKP23S, Al2O3 - Walter 6529688
MFR# 6529688ISO/ANSI# GX16-2E300N03-GD3 WKP23SSeries GX16
$39.66List $50.87
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWKP23S
MaterialSolid Carbide
CoatingAl2O3
Description
The Walter 6529688 is a GX16-2E300N03-GD3 WKP23S solid carbide indexable insert, grade WKP23S, Al2O3 coated. Suited for steel.
Specifications
Ansi codeGX16-2E300N03-GD3 WKP23S
Chip breakerGD3
Coating finishAl2O3
Coating processCVD
Corner radius0.0120
Cutting height0.1490
Cutting width0.1180
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size2
Insert size code2E300N03
Insert styleGX16
Iso codeGX16-2E300N03-GD3 WKP23S
Lead angle90
Manufacturer gradeWKP23S
Maximum depth of cut0.0790
Maximum depth of cut range0.0750 to 0.1000
Multi use toolYes
Overall length0.6300
Overall width0.1180
Primary workpiece materialSteel
RakePositive
Secondary workpiece materialCast Iron
Single or double endDouble
StandardsANSI; ISO
