Walter

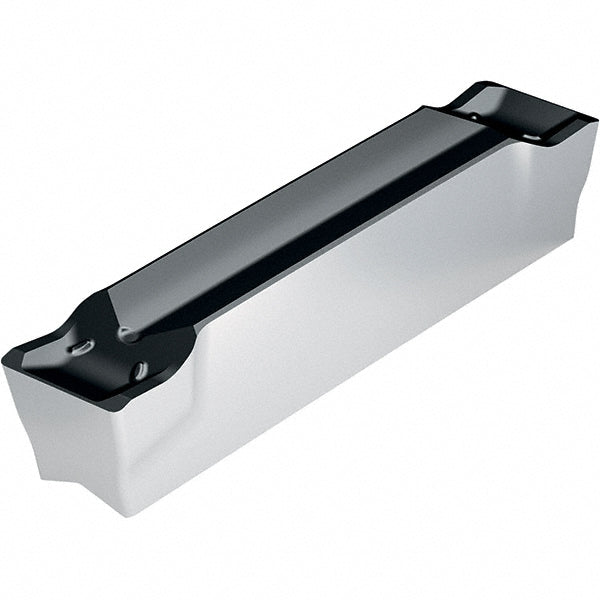

GX24-3E500N03-CE4 WKP23S Carbide Insert, Grade WKP23S, Al2O3 - Walter 6529719
MFR# 6529719ISO/ANSI# GX24-3E500N03-CE4 WKP23SSeries GX24
$39.34List $50.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWKP23S
MaterialCarbide
CoatingAl2O3
Description
The Walter 6529719 is a GX24-3E500N03-CE4 WKP23S carbide indexable insert, grade WKP23S, Al2O3 coated. Suited for steel.
Specifications
Ansi codeGX24-3E500N03-CE4 WKP23S
Chip breakerCE4
Coating finishAl2O3
Coating processCVD
Corner radius0.0120
Cutting height0.1610
Cutting width0.197
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialCarbide
Insert size3
Insert size code3E500N03
Insert styleGX24
Iso codeGX24-3E500N03-CE4 WKP23S
Lead angle90
Manufacturer gradeWKP23S
Maximum depth of cut0.9450
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Overall length0.945
Overall width0.197
Primary workpiece materialSteel
RakePositive
Secondary workpiece materialCast Iron
StandardsANSI; ISO
