Walter

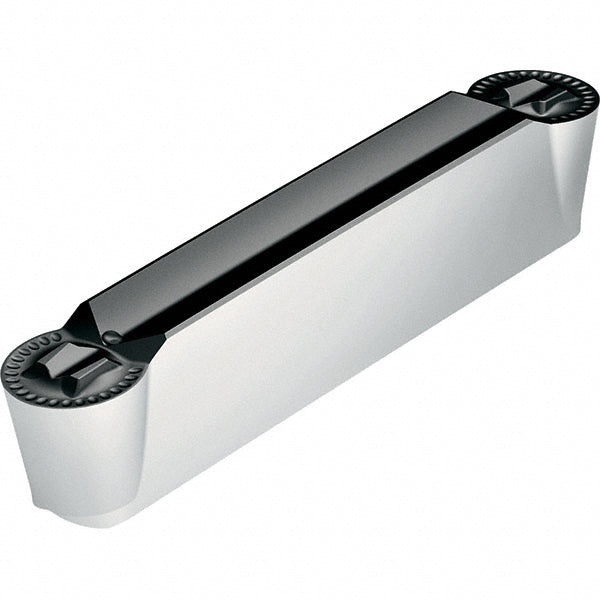

GX24-3E400N20-RD4 WKP23S Solid Carbide Insert, Grade WKP23S, Al2O3 - Walter 6529724
MFR# 6529724ISO/ANSI# GX24-3E400N20-RD4 WKP23SSeries GX24
$36.05List $46.23
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWKP23S
MaterialSolid Carbide
CoatingAl2O3
Description
The Walter 6529724 is a GX24-3E400N20-RD4 WKP23S solid carbide indexable insert, grade WKP23S, Al2O3 coated. Suited for steel.
Specifications
Ansi codeGX24-3E400N20-RD4 WKP23S
Chip breakerRD4
Coating finishAl2O3
Coating processCVD
Corner radius0.0790
Cutting height0.1610
Cutting width0.1570
Full radiusYes
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size3
Insert size code3E400N20
Insert styleGX24
Iso codeGX24-3E400N20-RD4 WKP23S
Lead angle90
Manufacturer gradeWKP23S
Maximum depth of cut0.0790
Maximum depth of cut range0.0750 to 0.1000
Multi use toolYes
Overall length0.9450
Overall width0.1570
Primary workpiece materialSteel
RakePositive
Secondary workpiece materialCast Iron
Single or double endDouble
StandardsANSI; ISO
