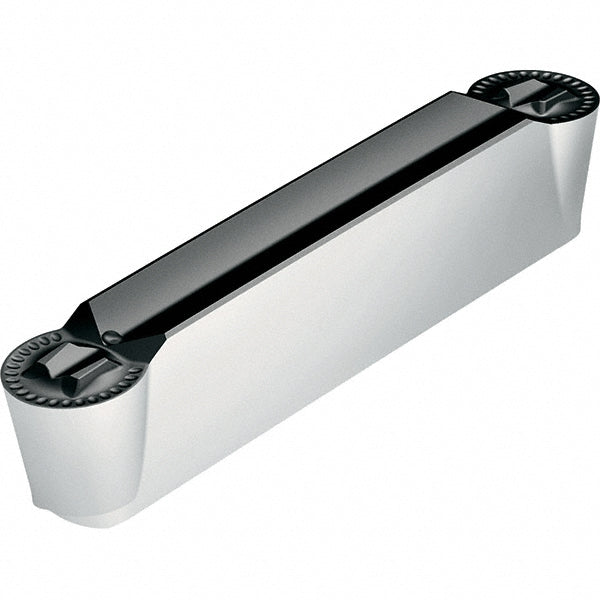

GX24-4E600N30-RD4 WKP23S Solid Carbide Insert, Grade WKP23S, Al2O3 - Walter 6529727

Walter

GX24-4E600N30-RD4 WKP23S Solid Carbide Insert, Grade WKP23S, Al2O3 - Walter 6529727

MFR# 6529727ISO/ANSI# GX24-4E600N30-RD4 WKP23SSeries GX24

$39.92List $50.32 Save 20%
Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeWKP23S
MaterialSolid Carbide
CoatingAl2O3

Description

The Walter 6529727 is a GX24-4E600N30-RD4 WKP23S solid carbide indexable insert, grade WKP23S, Al2O3 coated. Suited for steel.

Specifications

Ansi codeGX24-4E600N30-RD4 WKP23S
Chip breakerRD4
Coating finishAl2O3
Coating processCVD
Corner radius0.1180
Cutting height0.1610
Cutting width0.2360
Full radiusYes
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size6
Insert size code4E600N30
Insert styleGX24
Iso codeGX24-4E600N30-RD4 WKP23S
Lead angle90
Manufacturer gradeWKP23S
Maximum depth of cut0.1180
Maximum depth of cut range0.1000 to 0.1500
Multi use toolYes
Overall length0.9450
Overall width0.2360
Primary workpiece materialSteel
RakePositive
Secondary workpiece materialCast Iron
Single or double endDouble
StandardsANSI; ISO
