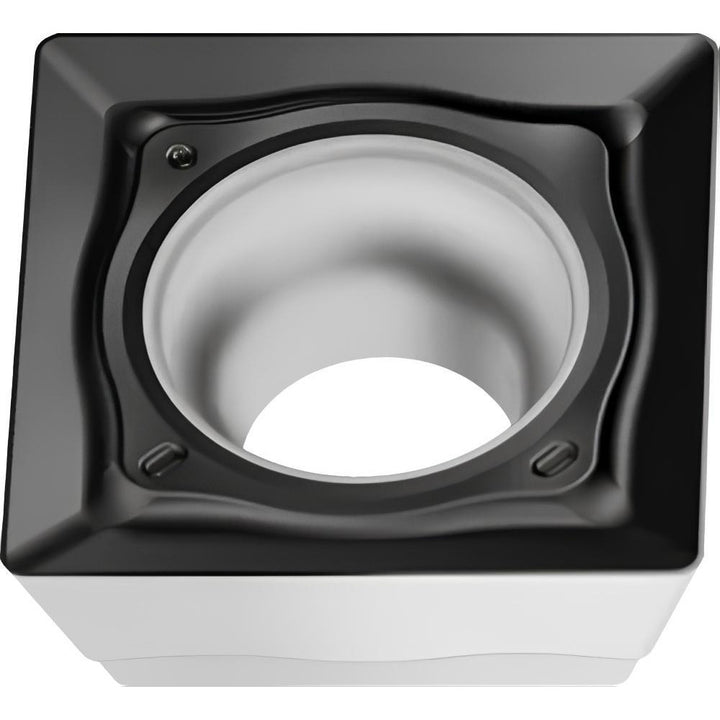

SDMT09T308-F57 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 6556201

Walter

SDMT09T308-F57 WKP35S Solid Carbide Insert, Grade WKP35S, TiCN - Walter 6556201

MFR# 6556201ISO/ANSI# SDMT09T308-F57 WKP35SCat# SDMT09T308-F57Series SDMT

$15.25List $19.57 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeSquare
GradeWKP35S
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 6556201 is a SDMT09T308-F57 WKP35S solid carbide indexable insert, grade WKP35S, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeSDMT09T308-F57 WKP35S
Chip breakerF57
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityM4000
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code09T308
Insert styleSDMT
Iso codeSDMT09T308-F57 WKP35S
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog numberSDMT09T308-F57
Manufacturer gradeWKP35S
Material applicationSteel; Cast Iron
Material gradeP35; K35
Maximum depth of cut0.3750
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle16
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width in3/8
