Walter

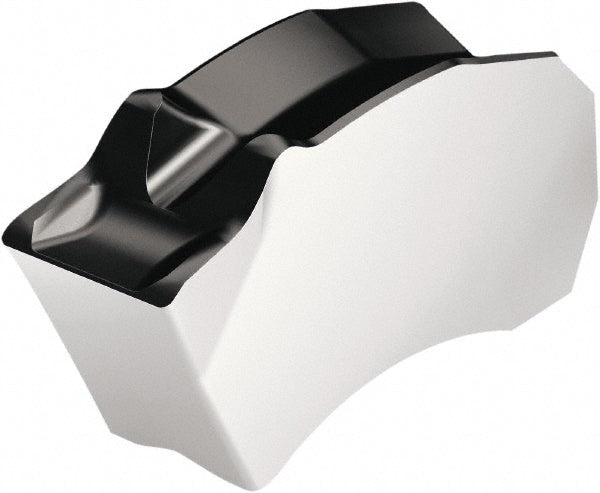

SX-3E300R6-CE4 WSM33S Solid Carbide Insert, Grade WSM33S, Al2O3 - Walter 6572447
MFR# 6572447ISO/ANSI# SX-3E300R6-CE4 WSM33SSeries SX
$18.61List $23.87
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM33S
MaterialSolid Carbide
CoatingAl2O3
Description
The Walter 6572447 is a SX-3E300R6-CE4 WSM33S solid carbide indexable insert, grade WSM33S, Al2O3 coated. Suited for superalloy.
Specifications
Ansi codeSX-3E300R6-CE4 WSM33S
Chip breakerCE4
Coating finishAl2O3
Coating processPVD
Corner radius0.0080
Cutting height0.1850
Cutting width0.1180
Full radiusNo
Insert handRight Hand
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size3
Insert size code3E300R6
Insert styleSX
Iso codeSX-3E300R6-CE4 WSM33S
Lead angle84
Manufacturer gradeWSM33S
Maximum depth of cut1.9690
Maximum depth of cut range1.0000+
Multi use toolYes
Overall length in1/2
Overall width0.1180
Primary workpiece materialSuperalloy
RakePositive
Single or double endSingle
StandardsANSI; ISO
