Walter

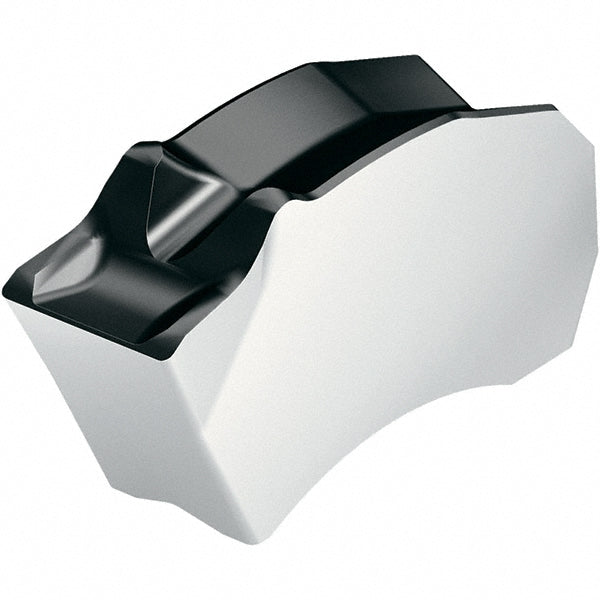

SX-4E400R6-CE4 WSM33S Carbide Insert, Grade WSM33S, Al2O3 - Walter 6572448
MFR# 6572448ISO/ANSI# SX-4E400R6-CE4 WSM33SSeries SX
$19.63List $25.17
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM33S
MaterialCarbide
CoatingAl2O3
Description
The Walter 6572448 is a SX-4E400R6-CE4 WSM33S carbide indexable insert, grade WSM33S, Al2O3 coated. Suited for superalloys.
Specifications
Ansi codeSX-4E400R6-CE4 WSM33S
Chip breakerCE4
Coating finishAl2O3
Coating processPVD
Corner radius0.0080
Cutting height0.1960
Cutting width0.1570in
Full radiusNo
Insert handRight Hand
Insert holding methodSelf Grip
Insert materialCarbide
Insert size4
Insert size code4E400R6
Insert styleSX
Iso codeSX-4E400R6-CE4 WSM33S
Lead angle84degree
Manufacturer gradeWSM33S
Maximum depth of cut1.9690
Maximum depth of cut range1.0000+
Multi use toolYes
Overall length in1/2in
Overall width0.1570in
Primary workpiece materialSuperalloys
RakePositive
StandardsANSI; ISO
