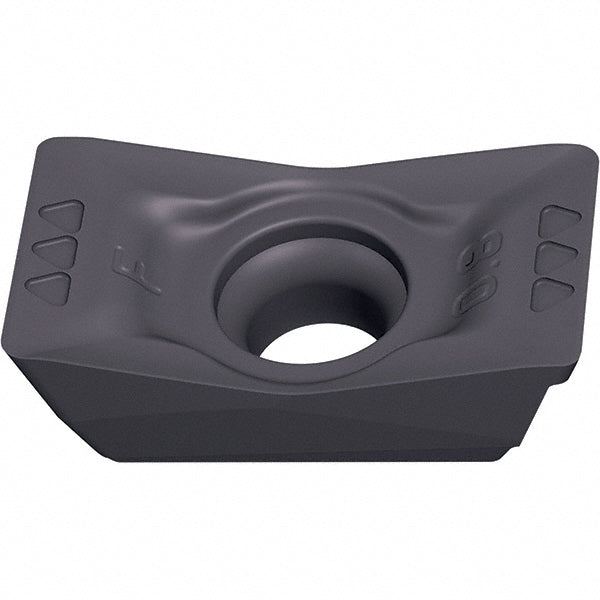

ADGX1606PER-F56 WXM15 Solid Carbide Insert, Grade WXM15, TiAlN - Walter 6632444

Walter

ADGX1606PER-F56 WXM15 Solid Carbide Insert, Grade WXM15, TiAlN - Walter 6632444

MFR# 6632444ISO/ANSI# ADGX1606PER-F56 WXM15Cat# ADGX1606PER-F56Series ADGX

$41.18List $52.81 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeWXM15
MaterialSolid Carbide
CoatingTiAlN

Description

The Walter 6632444 is a ADGX1606PER-F56 WXM15 solid carbide indexable insert, grade WXM15, TiAlN coated. Suited for steel.

Specifications

Ansi codeADGX1606PER-F56 WXM15
Chip breakerF56
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityF2010; F4042
Cutting edge styleChamfered; Honed
Hole diameter0.1728
Included angle degree85
Inscribed circle0.4250
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code1606
Insert styleADGX
Iso codeADGX1606PER-F56 WXM15
Length0.6890
Length range0.6500 to 0.7000
Manufacturers catalog numberADGX1606PER-F56
Manufacturer gradeWXM15
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeP15; M15; K15
Maximum depth of cut0.6890
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle16
Relief angle15.00
Secondary workpiece materialStainless Steel; Cast Iron
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2420
Thickness range0.2350 to 0.2500
Width0.4250
