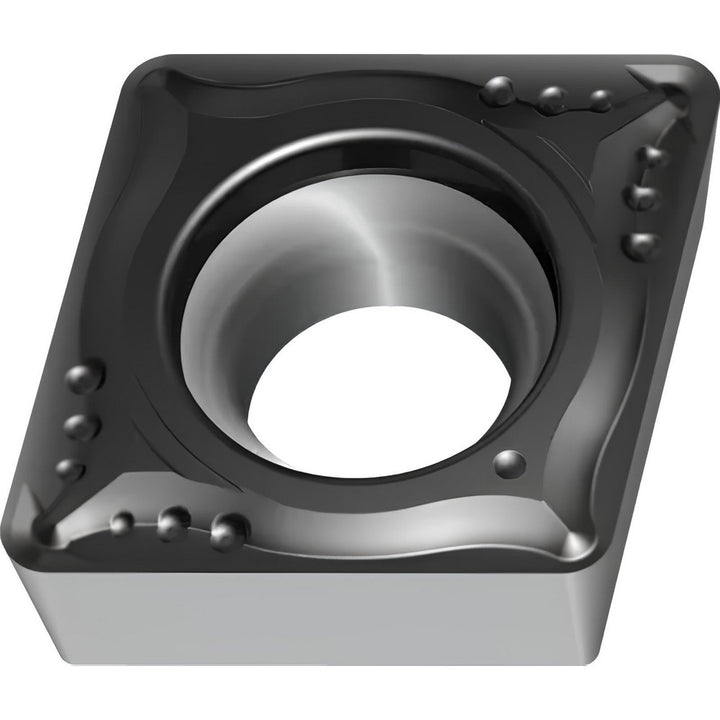

CCMT09T308-MM4 WMP20S Carbide Insert, Grade WMP20S, TiCN - Walter 6636294

Walter

CCMT09T308-MM4 WMP20S Carbide Insert, Grade WMP20S, TiCN - Walter 6636294

MFR# 6636294ISO/ANSI# CCMT3(2.5)2-MM4 WMP20SSeries CCMT-MM4

$14.89List $19.10 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeWMP20S
MaterialCarbide
CoatingTiCN

Description

The Walter 6636294 is a CCMT09T308-MM4 WMP20S carbide indexable insert, grade WMP20S, TiCN coated. Suited for steel, stainless steel.

Specifications

Chip breakerMM4
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle80degree
Industry standard numberCCMT3(2.5)2-MM4 WMP20S
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3810
Insert materialCarbide
Insert shapeDiamond 80
Insert size code32.52
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T308-MM4 WMP20S
Lead angle80degree
Length range0.3000 - 0.4000
Manufacturers catalog number6636294
Manufacturer gradeWMP20S
Material gradeM20; P25; S20
Maximum depth of cut0.1000
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle7
Relief angle7
Secondary workpiece materialSuper-alloys & Titanium
StandardsANSI; ISO
Tolerance codeM
Width0.381
Wiper edgeNo
