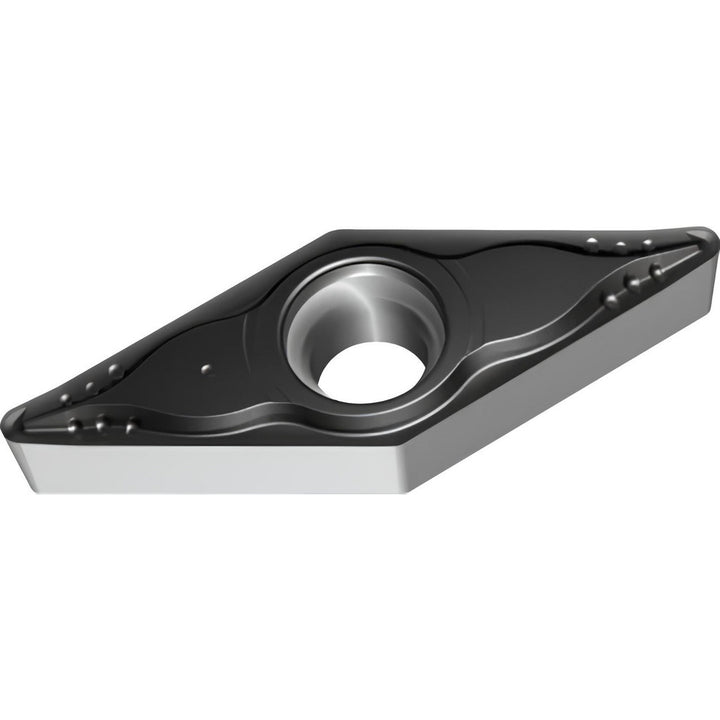

VBMT160404-MM4 WMP20S Carbide Insert, Grade WMP20S, TiCN - Walter 6636303

Walter

VBMT160404-MM4 WMP20S Carbide Insert, Grade WMP20S, TiCN - Walter 6636303

MFR# 6636303ISO/ANSI# VBMT331-MM4 WMP20SSeries VBMT-MM4

$24.76List $31.75 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeWMP20S
MaterialCarbide
CoatingTiCN

Description

The Walter 6636303 is a VBMT160404-MM4 WMP20S carbide indexable insert, grade WMP20S, TiCN coated. Suited for steel, stainless steel.

Specifications

Chip breakerMM4
Clearance codeB
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle35degree
Industry standard numberVBMT331-MM4 WMP20S
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6540
Insert materialCarbide
Insert shapeDiamond 35
Insert size code331
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT160404-MM4 WMP20S
Lead angle35degree
Length range0.6500 - 0.7000
Manufacturers catalog number6636303
Manufacturer gradeWMP20S
Material gradeM20; P25; S20
Maximum depth of cut0.0780
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle7
Relief angle5
Secondary workpiece materialSuper-alloys & Titanium
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
