Walter

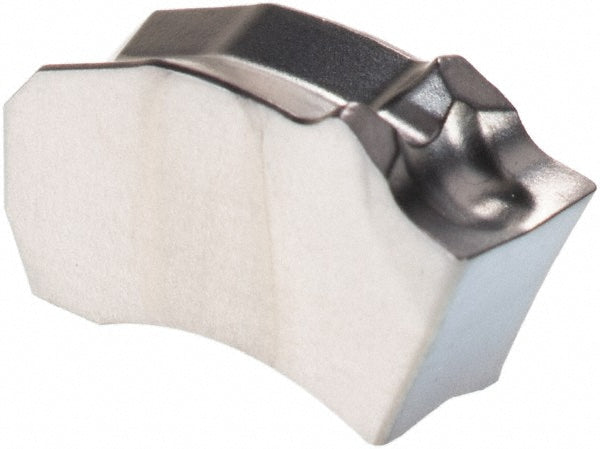

SX-4E400N02-CF5 WSM33S Solid Carbide Insert, Grade WSM33S, Al2O3 - Walter 6646223
MFR# 6646223ISO/ANSI# SX-4E400N02-CF5 WSM33SSeries SX
$19.63List $25.17
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM33S
MaterialSolid Carbide
CoatingAl2O3
Description
The Walter 6646223 is a SX-4E400N02-CF5 WSM33S solid carbide indexable insert, grade WSM33S, Al2O3 coated. Suited for superalloy.
Specifications
Ansi codeSX-4E400N02-CF5 WSM33S
Chip breakerCF5
Coating finishAl2O3
Coating processPVD
Corner radius0.0080
Cutting height0.1960
Cutting width0.1570
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size4
Insert size code4E400N02
Insert styleSX
Iso codeSX-4E400N02-CF5 WSM33S
Lead angle90
Manufacturer gradeWSM33S
Maximum depth of cut1.9690
Maximum depth of cut range1.0000+
Multi use toolYes
Overall length0.4840
Overall width0.1570
Primary workpiece materialSuperalloy
RakePositive
Single or double endSingle
StandardsANSI; ISO
