Walter

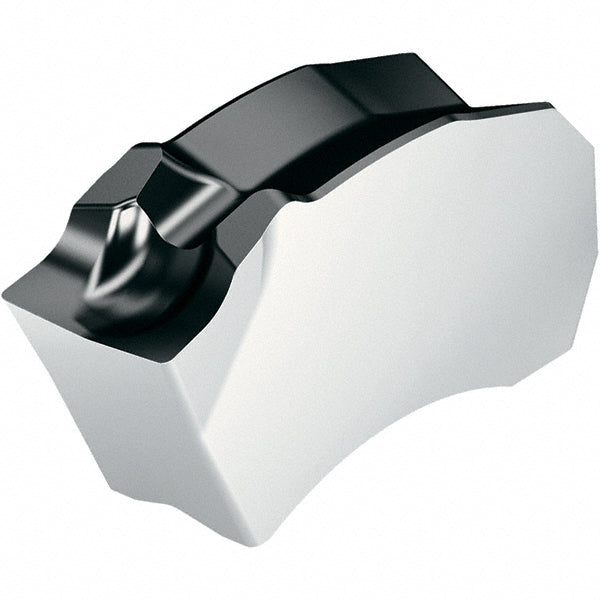

SX-5E500N04-CF5 WSM33S Carbide Insert, Grade WSM33S, Al2O3 - Walter 6646225
MFR# 6646225ISO/ANSI# SX-5E500N04-CF5 WSM33SSeries SX
$20.63List $26.47
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM33S
MaterialCarbide
CoatingAl2O3
Description
The Walter 6646225 is a SX-5E500N04-CF5 WSM33S carbide indexable insert, grade WSM33S, Al2O3 coated. Suited for superalloys.
Specifications
Ansi codeSX-5E500N04-CF5 WSM33S
Chip breakerCF5
Coating finishAl2O3
Coating processPVD
Corner radius0.0160
Cutting height0.1990
Cutting width0.197
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialCarbide
Insert size5
Insert size code5E500N04
Insert styleSX
Iso codeSX-5E500N04-CF5 WSM33S
Lead angle90
Manufacturer gradeWSM33S
Maximum depth of cut3.1500
Maximum depth of cut range1.0000+
Multi use toolYes
Overall length0.484
Overall width0.197
Primary workpiece materialSuperalloys
RakePositive
StandardsANSI; ISO
