Walter

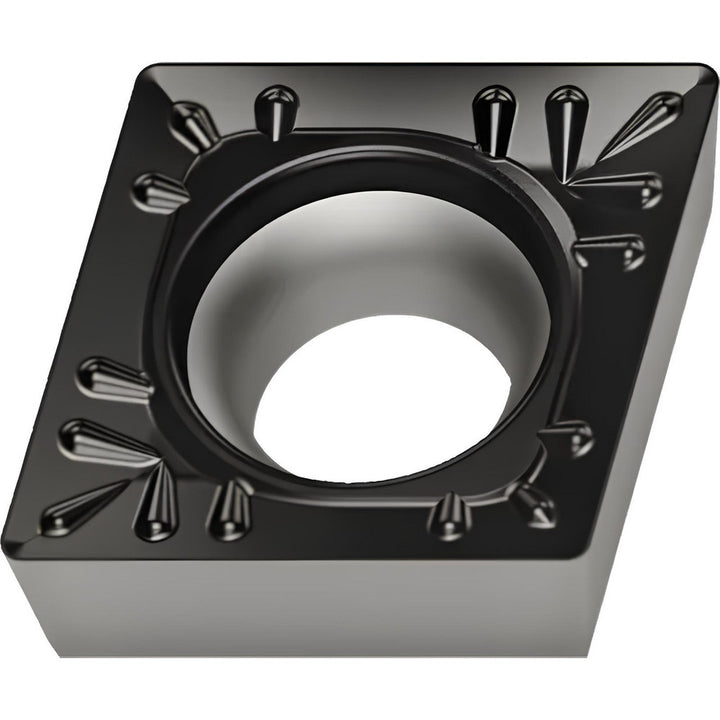

CCMT09T308-RK4 WKK10S Carbide Insert, Grade WKK10S, TiCN - Walter 6650914
MFR# 6650914ISO/ANSI# CCMT3(2.5)2-RK4 WKK10SSeries CCMT-RK4
$14.89List $19.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeWKK10S
MaterialCarbide
CoatingTiCN
Description
The Walter 6650914 is a CCMT09T308-RK4 WKK10S carbide indexable insert, grade WKK10S, TiCN coated. Suited for cast iron.
Specifications
Chip breakerRK4
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1730
Included angle80degree
Industry standard numberCCMT3(2.5)2-RK4 WKK10S
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3810
Insert materialCarbide
Insert shapeDiamond 80
Insert size code32.52
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T308-RK4 WKK10S
Lead angle80degree
Length range0.3000 - 0.4000
Manufacturers catalog number6650914
Manufacturer gradeWKK10S
Material gradeH30; K10
Maximum depth of cut0.2000
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Rake angle12
Relief angle7
Secondary workpiece materialHard Material
StandardsANSI; ISO
Tolerance codeM
Width0.3810in
Wiper edgeNo
