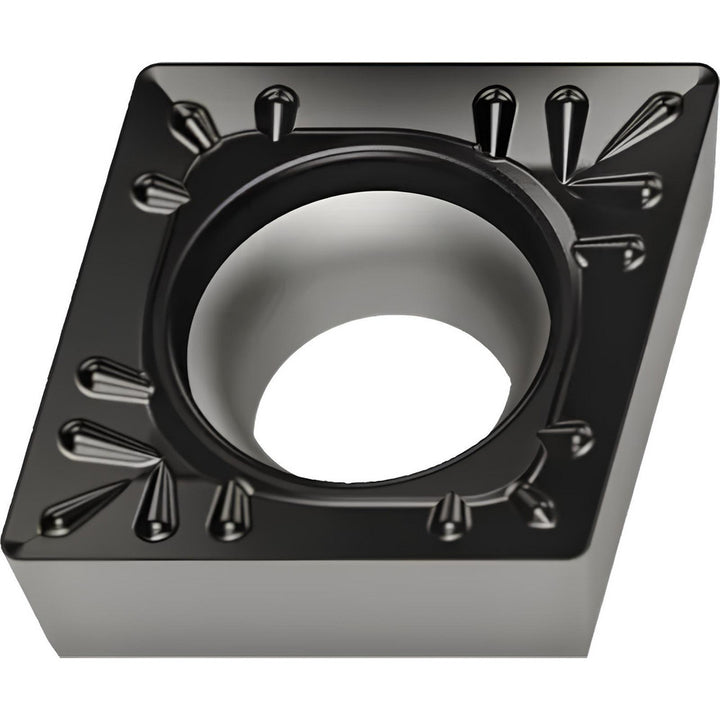

CCMT120408-RK4 WKK10S Carbide Insert, Grade WKK10S, TiCN - Walter 6650918

Walter

CCMT120408-RK4 WKK10S Carbide Insert, Grade WKK10S, TiCN - Walter 6650918

MFR# 6650918ISO/ANSI# CCMT432-RK4 WKK10SSeries CCMT-RK4

$21.31List $27.33 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeWKK10S
MaterialCarbide
CoatingTiCN

Description

The Walter 6650918 is a CCMT120408-RK4 WKK10S carbide indexable insert, grade WKK10S, TiCN coated. Suited for cast iron.

Specifications

Chip breakerRK4
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2170
Included angle80degree
Industry standard numberCCMT432-RK4 WKK10S
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT120408-RK4 WKK10S
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number6650918
Manufacturer gradeWKK10S
Material gradeH30; K10
Maximum depth of cut0.2000
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Rake angle12
Relief angle7
Secondary workpiece materialHard Material
StandardsANSI; ISO
Tolerance codeM
Width0.5080in
Wiper edgeNo
