Walter
TCMT110204-RK4 WKK20S Carbide Insert, Grade WKK20S, TiCN - Walter 6651144
MFR# 6651144ISO/ANSI# TCMT2(1.5)1-RK4 WKK20SSeries TCMT-RK4
$14.15List $18.14
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeWKK20S
MaterialCarbide
CoatingTiCN
Description

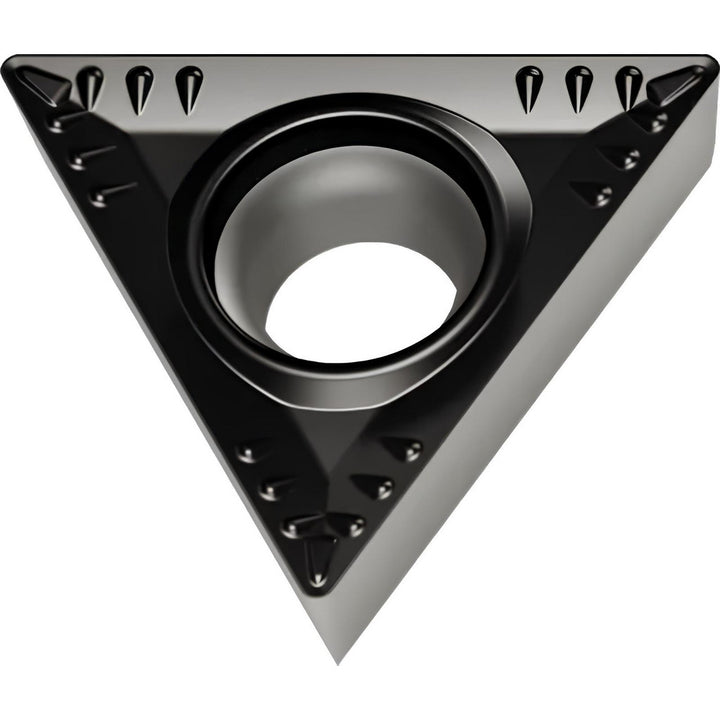

The Walter 6651144 is a TCMT110204-RK4 WKK20S carbide indexable insert, grade WKK20S, TiCN coated. Suited for cast iron.
Specifications
Chip breakerRK4
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1100
Included angle60degree
Industry standard numberTCMT2(1.5)1-RK4 WKK20S
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4330
Insert materialCarbide
Insert shapeTriangle
Insert size code21.51
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT110204-RK4 WKK20S
Lead angle60degree
Length range0.4000 - 0.5000
Manufacturers catalog number6651144
Manufacturer gradeWKK20S
Material gradeK20; P10
Maximum depth of cut0.1000
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialCast Iron
RakePositive
Rake angle12
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width0.4330in
Wiper edgeNo
