Walter

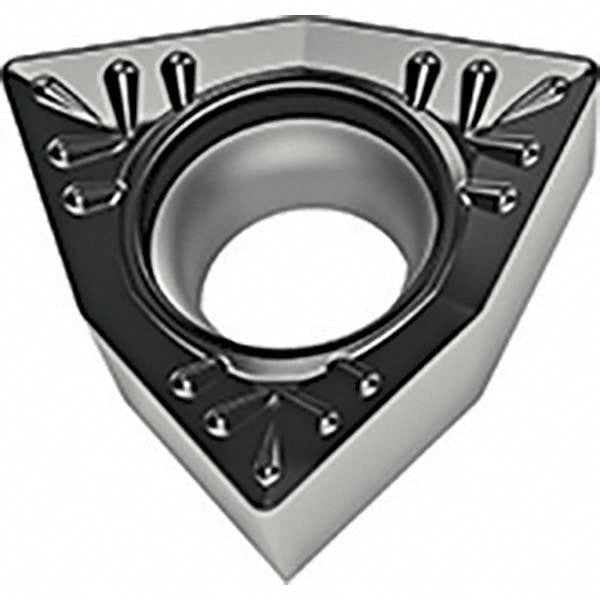

WCMT06T308-RK4 WKK20S Carbide Insert, Grade WKK20S, TiCN - Walter 6651168
MFR# 6651168ISO/ANSI# WCMT3(2.5)2-RK4 WKK20SSeries WCMT-RK4
$16.93List $21.71
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeWKK20S
MaterialCarbide
CoatingTiCN
Description
The Walter 6651168 is a WCMT06T308-RK4 WKK20S carbide indexable insert, grade WKK20S, TiCN coated. Suited for cast iron.
Specifications
Chip breakerRK4
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1730
Included angle80degree
Industry standard numberWCMT3(2.5)2-RK4 WKK20S
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.5140
Insert materialCarbide
Insert shapeTrigon
Insert size code32.52
Insert styleWCMT
Insert thickness in5/32
Iso codeWCMT06T308-RK4 WKK20S
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number6651168
Manufacturer gradeWKK20S
Material gradeK20; P10
Maximum depth of cut0.1100
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialCast Iron
RakePositive
Rake angle12
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width0.5140in
Wiper edgeNo
