Walter

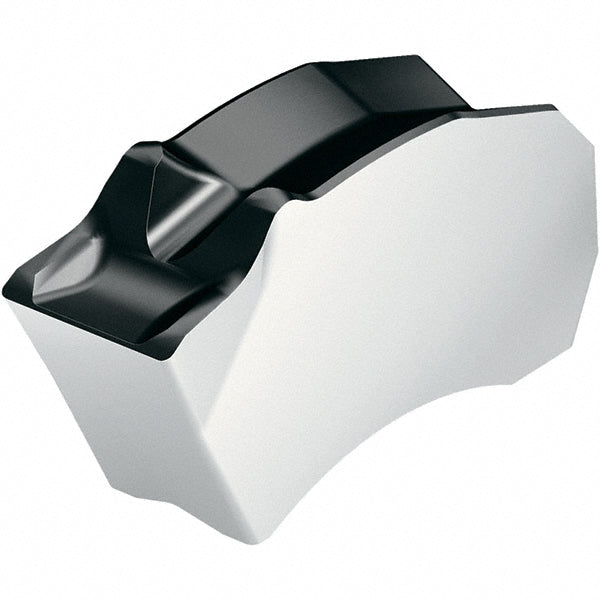

SX-3E300N02-CE4 WSM23S Solid Carbide Insert, Grade WSM23S, Al2O3 - Walter 6737586
MFR# 6737586ISO/ANSI# SX-3E300N02-CE4 WSM23SSeries SX
$20.20List $25.91
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM23S
MaterialSolid Carbide
CoatingAl2O3
Description
The Walter 6737586 is a SX-3E300N02-CE4 WSM23S solid carbide indexable insert, grade WSM23S, Al2O3 coated. Suited for superalloy.
Specifications
Ansi codeSX-3E300N02-CE4 WSM23S
Chip breakerCE4
Coating finishAl2O3
Coating processPVD
Corner radius0.0080
Cutting height0.1900
Cutting width0.1180
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size3
Insert size code3E300N02
Insert styleSX
Iso codeSX-3E300N02-CE4 WSM23S
Lead angle90
Manufacturer gradeWSM23S
Maximum depth of cut1.9690
Maximum depth of cut range1.0000+
Multi use toolYes
Overall length0.4840
Overall width0.1180
Primary workpiece materialSuperalloy
RakePositive
Single or double endSingle
StandardsANSI; ISO
