Walter

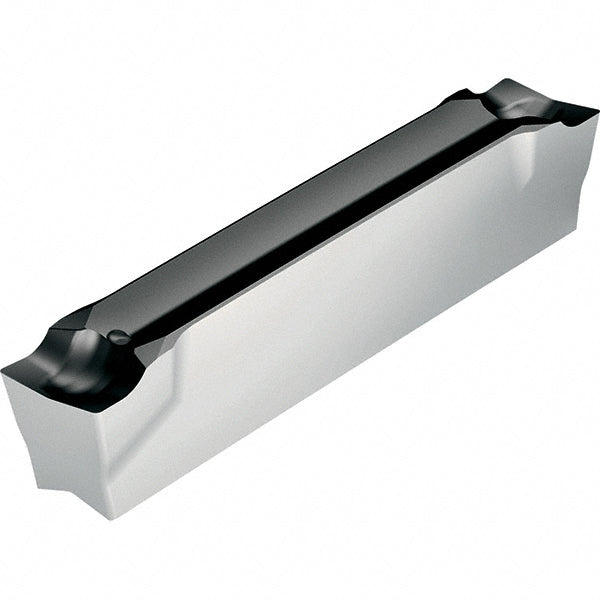

GX242E300N02CF5 WSM23S Solid Carbide Insert, Grade WSM23S, TiAlN/Al2O3/Al - Walter 6738341
MFR# 6738341ISO/ANSI# GX242E300N02CF5 WSM23SCat# GX24-2E300N02-CF5 WSM23SSeries GX-E-CF5
$39.51List $49.79
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM23S
MaterialSolid Carbide
CoatingTiAlN/Al2O3/Al
Description
The Walter 6738341 is a GX242E300N02CF5 WSM23S solid carbide indexable insert, grade WSM23S, TiAlN/Al2O3/Al coated. Suited for superalloy.
Specifications
ChipbreakerCF5
Coating finishTiAlN/Al2O3/Al
Coating processPVD
Corner radius0.0080
Cutting tool applicationGrooving; Parting
Cutting width0.1180
Insert handNeutral
Insert materialSolid Carbide
Insert size code2E300N02
Insert styleGX
Iso codeGX242E300N02CF5 WSM23S
Lead angle directionNeutral
Manufacturers catalog numberGX24-2E300N02-CF5 WSM23S
Manufacturer gradeWSM23S
Multi use toolYes
Overall length0.9450
Overall width0.1180
Primary workpiece materialSuperalloy
Relief angle10.00
StandardsANSI; ISO
