Walter

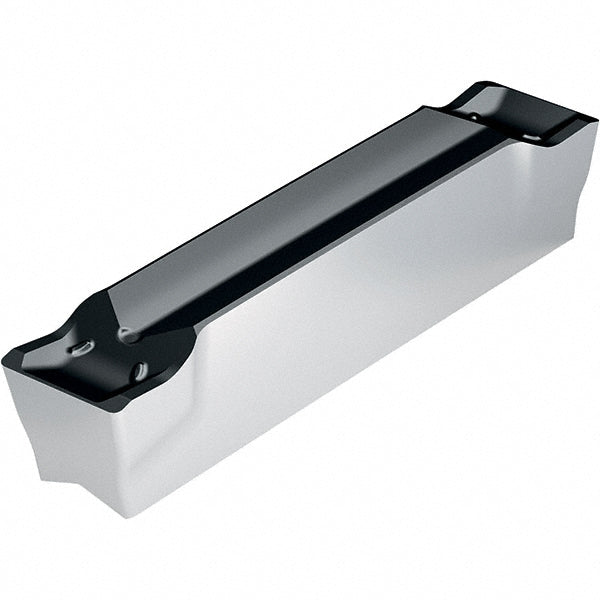

GX161E200N02CE4 WSM23S Carbide Insert, Grade WSM23S, TiAlN/Al2O3/Al - Walter 6738343
MFR# 6738343ISO/ANSI# GX161E200N02CE4 WSM23SCat# GX16-1E200N02-CE4 WSM23SSeries GX-E-CE4
$30.56List $39.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM23S
MaterialCarbide
CoatingTiAlN/Al2O3/Al
Description
The Walter 6738343 is a GX161E200N02CE4 WSM23S carbide indexable insert, grade WSM23S, TiAlN/Al2O3/Al coated. Suited for superalloy.
Specifications
ChipbreakerCE4
Coating finishTiAlN/Al2O3/Al
Coating processPVD
Corner radius0.0080
Cutting tool applicationGrooving; Parting
Cutting width0.0790
Insert handNeutral
Insert materialCarbide
Insert size code1E200N02
Insert styleGX
Iso codeGX161E200N02CE4 WSM23S
Lead angle directionNeutral
Manufacturers catalog numberGX16-1E200N02-CE4 WSM23S
Manufacturer gradeWSM23S
Multi use toolYes
Overall length0.6540
Overall width0.0790
Primary workpiece materialSuperalloy
Relief angle21.00
StandardsANSI; ISO
