Walter

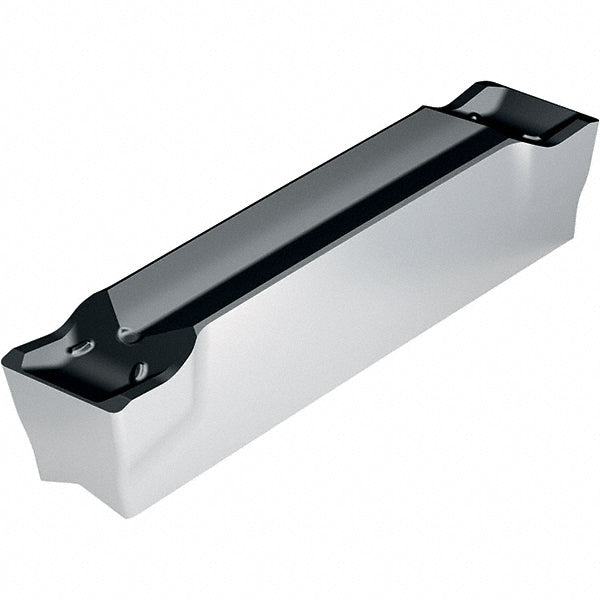

GX241E200N02CE4 WSM23S Solid Carbide Insert, Grade WSM23S, TiAlN - Walter 6738345
MFR# 6738345ISO/ANSI# GX241E200N02CE4 WSM23SCat# GX24-1E200N02-CE4 WSM23SSeries GX-E-CE4
$32.75List $42.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM23S
MaterialSolid Carbide
CoatingTiAlN
Description
The Walter 6738345 is a GX241E200N02CE4 WSM23S solid carbide indexable insert, grade WSM23S, TiAlN coated. Suited for superalloy.
Specifications
ChipbreakerCE4
Coating finishTiAlN
Coating processPVD
Corner radius0.0080
Cutting tool applicationGrooving; Parting
Cutting width0.0790
Insert handNeutral
Insert materialSolid Carbide
Insert size code1E200N02
Insert styleGX
Iso codeGX241E200N02CE4 WSM23S
Lead angle directionNeutral
Manufacturers catalog numberGX24-1E200N02-CE4 WSM23S
Manufacturer gradeWSM23S
Multi use toolYes
Overall length0.9450
Overall width0.0790
Primary workpiece materialSuperalloy
Relief angle10.00
StandardsANSI; ISO
