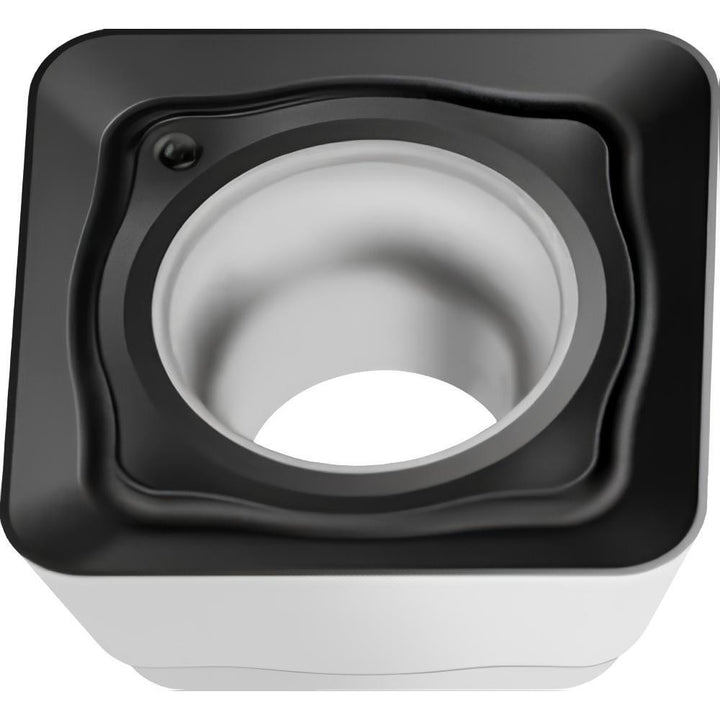

SDMT06T204-F57 WKP25S Solid Carbide Insert, Grade WKP25S, TiCN - Walter 6795991

Walter

SDMT06T204-F57 WKP25S Solid Carbide Insert, Grade WKP25S, TiCN - Walter 6795991

MFR# 6795991ISO/ANSI# SDMT06T204-F57 WKP25SCat# SDMT06T204-F57Series SDMT

$13.47List $17.28 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeSquare
GradeWKP25S
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 6795991 is a SDMT06T204-F57 WKP25S solid carbide indexable insert, grade WKP25S, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeSDMT06T204-F57 WKP25S
Chip breakerF57
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutter series compatibilityM4000
Cutting edge styleChamfered; Honed
Hole diameter0.0980
Included angle degree90
Inscribed circle in1/4
Inscribed circle range0.2500 to 0.3000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size06
Insert size code06T204
Insert styleSDMT
Iso codeSDMT06T204-F57 WKP25S
Length in1/4
Length range0.0000 to 0.3200
Manufacturers catalog numberSDMT06T204-F57
Manufacturer gradeWKP25S
Material applicationSteel; Cast Iron
Material gradeP25; K25
Maximum depth of cut0.2500
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle16
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/64
Thickness range0.1000 to 0.1250
Width in1/4
